I Can help you guys from 1991 and up see how

[Tezmaster]

Well Guys Im Scott if you dont know me all ready. I work at a Toyota Dealship. i have access to more exstencive diagrams write ups how to fix any toyota Car.truck.van.suv. from 1991 and up but im only gonna help those with celicas from 1991 any model .. just cause im a nice guy...... you need some info on anything else just ask

[aych]

yeah.. what happens if we have a 1990? sigh.

[Tezmaster]

i dont think the system goes that far i have a 1988 gts and a 89 and i looked and nothing ill check for 1990 i sec

[Tezmaster]

Yess i have 1990 i can get you any thing about ur car

[Knix]

We just puchased a 1990 Toyota Celica GT from a Lien sale the keys that came with it are cut keys. We are having trouble with the door locks. The drivers door will unlock when you use the key in the passenger side as well as the door lock buttons. But the key will not unlock the drivers side door from the outside.

Do you think the wiring info that your offering would help me sort out what is wrong with the door locks? or does any one reading this have a suggestion about what I need to do, I am kind of clueless, sorry. The car doesnt seem to have an alarm system, and the doors dont lock our unlock when you start driving or take key out of ignition.

thankyou

Knix

[aych]

hey tez. which part of canada are you in?

[ST185]

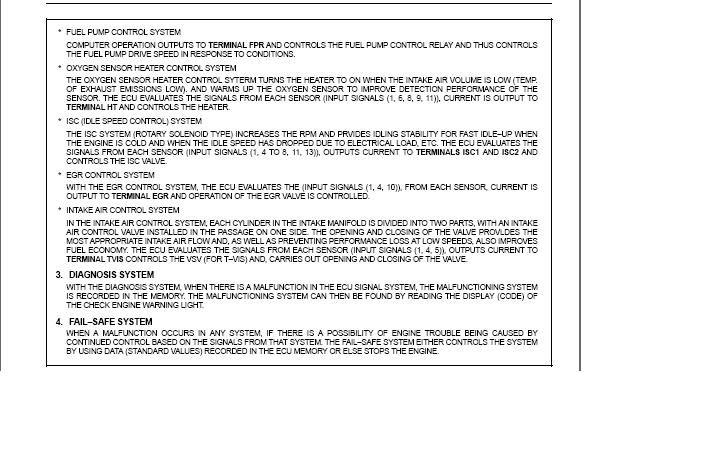

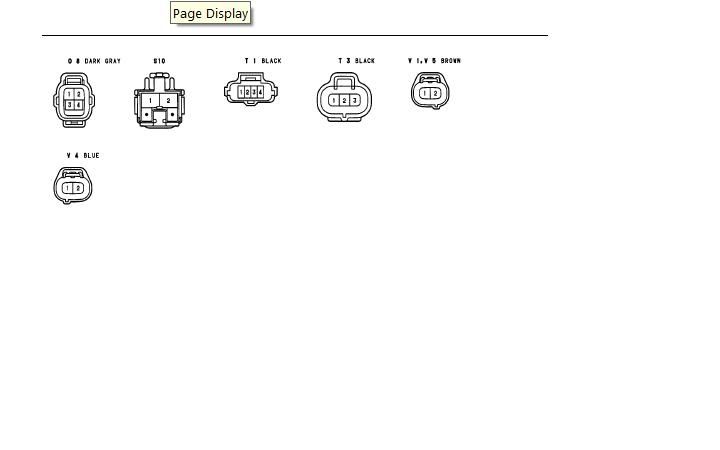

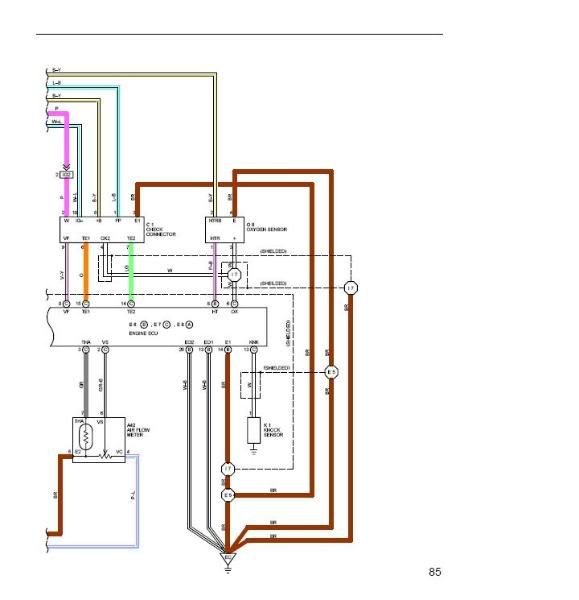

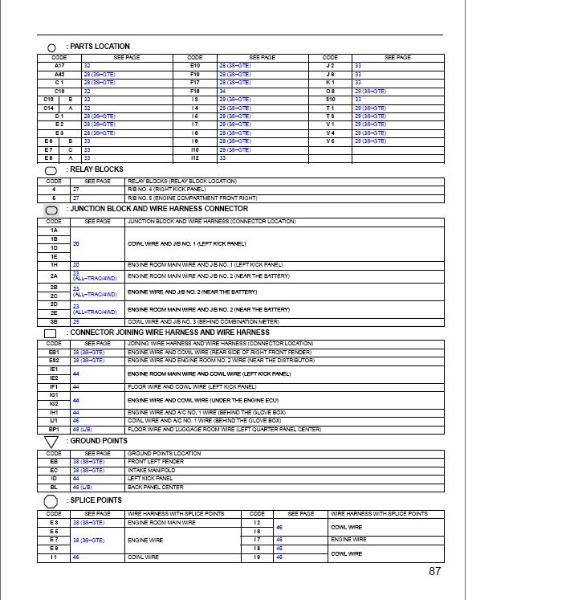

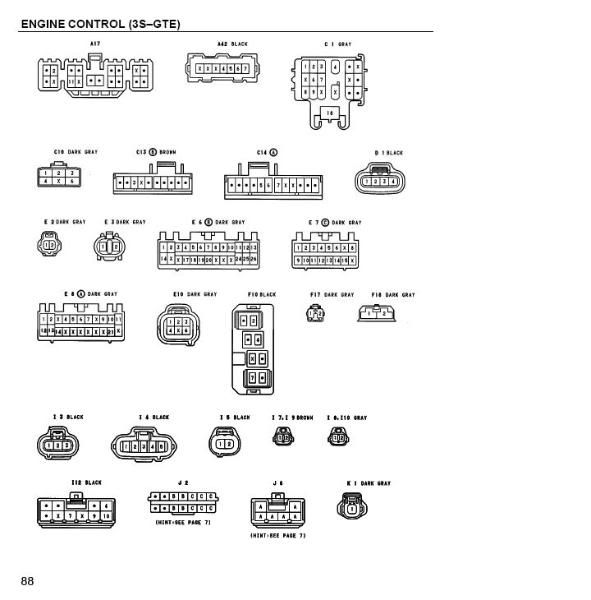

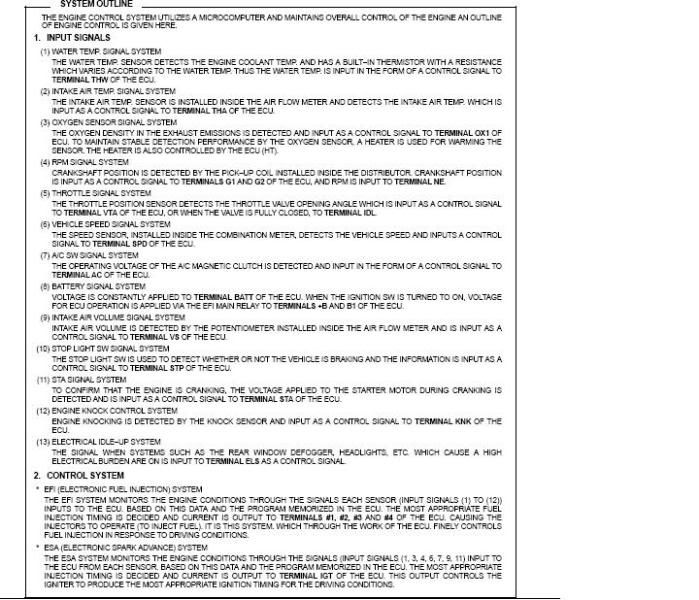

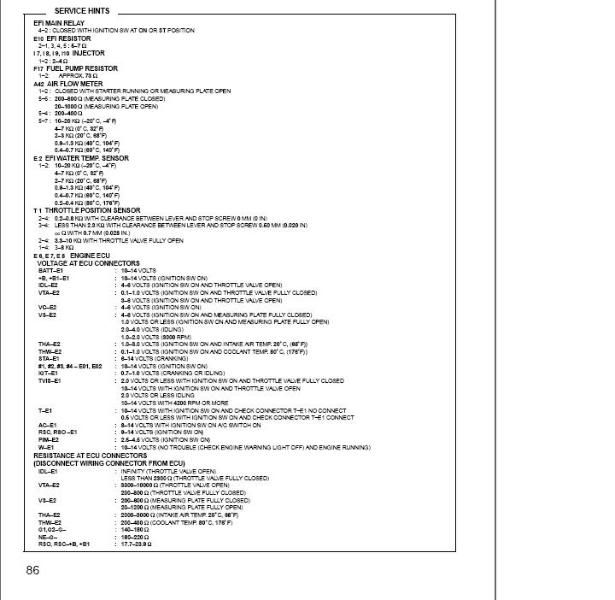

Can you get an engine control diagram of RC and/or CS model? Thanks
edit: Late 1991 or 1992 Celica GT-Four RC and/or Carlos Sainz model.

[Tezmaster]

give me about 30 mins

[Tezmaster]

Engine Model

[Tezmaster]

for the 92 what is it 3s-gte.5sfe. and m/t or a/t

[Tezmaster]

ill take a guess and go for the turbo

[Tezmaster]

ok
I have them

[Tezmaster]

kk almost done just uploading so you can see what type of powers i have

[Tezmaster]

Your Welcome!

[Tezmaster]

Originally Posted by Knix

We just puchased a 1990 Toyota Celica GT from a Lien sale the keys that came with it are cut keys. We are having trouble with the door locks. The drivers door will unlock when you use the key in the passenger side as well as the door lock buttons. But the key will not unlock the drivers side door from the outside.

Do you think the wiring info that your offering would help me sort out what is wrong with the door locks? or does any one reading this have a suggestion about what I need to do, I am kind of clueless, sorry. The car doesnt seem to have an alarm system, and the doors dont lock our unlock when you start driving or take key out of ignition.

thankyou

Knix

Yes I have the Electrical Wiring Diagram for the Door locks.
