1st Gen Bolt-On Upgrade List & Other Modifications + DIY Help

Welcome to the 1st gen registry for all direct bolt-ons and other various modifications that are possible on our cars! Here, all of these improvements will be documented as well as any DIYs I and others have written and more. This post will consistently be updated with new info on a regular basis. Fitment info is confirmed with real-world field testing experience on 01-03 (My 02 Highlander), 04-07 ('08 RX350) and 08-19 if possible ('14 RX350).


August 1st, 2021
New additions: Alignment specs for 2001-2007 FWD & AWD

August 2nd, 2021
New additions: VVT-i OCV interchangeability

August 8th, 2021
New additions: FWD 2nd gen rear strut warning, available options added

August 11th, 2021
New additions: Rear differential info (2001-2003)

August 18th, 2021
New additions: Lexus badge fitment, new fitment flag

September 25th, 2021
New additions: Inner and outer tie rod info

October 2nd, 2021
New additions: Strut upper isolator info for 01-03

October 6th, 2021
New additions: Rear suspension info

November 24th, 2021
New additions: RX300 rear seat info, 2nd gen rear knuckle swap info, rim fitment info updated, rear diff swap info (2001-2013)

December 16th, 2021
New additions: 2nd gen front knuckle info, 2nd gen front sway bar bracket info, 2nd gen rear sway bar bracket info, wheel hub info, wheel bearing info, front end links

January 9th, 2022
New additions: 2nd gen front knuckle assembly fitment confirmed, knuckle assy choices for 2001-2007 FWD, Sienna outer tie rod fitment for 04-07 front knuckles, sway bar bushing info, Venza struts

January 14th, 2022
New additions: Separated steering & suspension categories, new aluminum rear sway bar end link info

March 1st, 2022
New additions: Part cross-referencing source list

March 20th, 2022
New additions: ABS sensor info, wheel stud info

April 9th, 2022
New additions: 2014-2019 rear brake fitment, update on 2006-2014 IS350 rear rotor fitment, solution for sport pedals on 2004-2007, update on RX350 heated steering wheel

April 19th, 2022
New additions: Power steering rubber return line hack (Thanks to Ralph), vented rear brake rotor project, LED turn signal relay mod

May 8th, 2022
New additions: Interior upgrades, strut component info

June 7th, 2022
New additions: Steering rack fitment, steering info

June 19th, 2022
New additions: Toe adjustment bolts, ABS sensor info

July 29th, 2022
New additions: Added y-pipe info, 04-11 Camry OTR fitment for 04-07 knuckles, front brake info for 4th gen Highlander, 4th gen Sienna, RAV4 Prime and 2nd gen NX

August 28th, 2022
New additions: 05-11 Avalon sunvisors, attempts at air box swap

September 2nd, 2022
New additions: 2004-2009 RX front seat confirmed fitment, 2010-2015 RX front headrest fitment test

September 15th, 2022
New additions: HUGE UPDATE! Posted various bolt sizes, torque ratings and part numbers

October 5th, 2022
New additions: Subframe compatibility

November 21st, 2022
New additions: Rear toe adjustment bolts for 01-03 AWD

December 3rd, 2022
New additions: Link to transmission post

December 20th, 2022
New additions: 99-03 Lexus RX300 sub fitment and DIY posted

December 25th, 2022 - Merry Christmas!
New additions: Lexus illuminated window switch DIY posted

January 3rd, 2023 - Happy New Year!
New additions: Full interior light replacement DIY

January 13th, 2023
New additions: Cargo tarp/cover is not compatible between 01-03 models and 04-07 models

January 17th, 2023
New additions: RX500h F-Sport Performance brake info added, various other brake info added

February 13th, 2023
New additions: Axle nut info 01-07, reusable engine and cabin air filter info

March 21th, 2023
New additions: 3rd gen front strut info

June 7th, 2023
New additions: Suspension comparison pics



GREAT CROSS-REFERENCING & OTHER SOURCES:

These are some of the websites I use for cross-referencing, parts-binning as well as finding info for my projects

- rockauto.com - Pictures of parts, sizes and info of components (brakes, sway bar bushings, dimensions), etc
- toyotapartsdeal.com - Part no. cross-referencing
- lexuspartsnow.com - Part no. cross-referencing
- toyodiy.com/parts/xref - Part no. cross-referencing
- parts.lexus.com - Part diagrams
- as-pl.com/en/c/alternators_a - Alternator info
- riw.com.tr/en - Suspension & Steering part info
- ebay.com - Pictures of parts
- prodemand.com - Wiring diagrams, repair instructions
- aliexpress.com - Appearance & part no. of wire connectors
- zinref.ru/avtomobili/Toyota/386_Toyota%20Wiring%20Repair%20Manual__en_4600_raznie_11/000.htm - Toyota electrical connector types
- tiresize.com/comparison/ - Visual tire size comparison
- willtheyfit.com/ - Visual wheel fitment comparison
- wheel-size.com/ - Car tire & wheel specs info
- summitracing.com - Finding component specs
- oreillyauto.com/ - Finding component specs

__




LEGEND:

(Brackets) - Extra details
[Brackets] - Cars this part can be obtained from, brand will be added in CAPITALS: if it is not from Lexus/Toyota
Underline - Currently installed on my car
Green - Direct upgrade confirmed fit
Blue - Untested fitment
Bold - OEM part
Yellow - Not 100% direct bolt on, some fabrication required
Orange - POSSIBLE but not recommended due to difficulty / need to buy other parts
Red - The part will not fit



2001-2007


Coilover max drop:
Ceika: 2" front, ? rear
BC Racing: ? front, ? rear
Fortune Auto 500: ? front, ? rear


WARNING: 2nd gen 08-09 & Venza front struts have a narrow spring seat, 1st gen springs will not fit! 2nd gen 10-13 & 3rd gen 14-19 have a reversed coil on the passenger side! Please proceed at your own risk with this list, and use it as a guide rather than an end-all-be-all answer

Comparison between Gen 2 and Gen 1 rear struts on an AWD HiHy (225/65R17 tires)



Gen 2 strut & springs up front. Gen 2 struts & Gen 1 springs out back on 01-03 AWD


Frame (excl hybrid):
Front subframe [2001-2013 Highlander, 2004-2015 RX]
Rear subframe AWD [2001-2013 Highlander, 1999-2009 RX]
Front subframe [2009-2015 Venza] (Looks similar to 2001-2013 Highlander)
Rear subframe FWD [2001-2013 Highlander, 2009-2015 Venza, 2002-2011 Camry, 2005-2012 Avalon, 2004-2008 Solara, 2004-2009 RX)
Front subframe [2014-2019 Highlander] (Slightly beefier design. Similar to 2001-2013 frame)
Front subframe [2004-2020 Sienna AWD] (Looks similar to the Highlander one)
Front subframe [2016-2022 RX] (Beefier. Doesn't have the space to mount the rear engine mount bracket, uses bigger sway bar brackets)
Rear subframe AWD / FWD [2014-2023 Highlander, 2010-2022 RX] (Designed for the double wishbone suspension of the newer models)
Rear subframe AWD [2009-2015 Venza] (Differential bushing is different and is in the wrong spot)


Suspension:

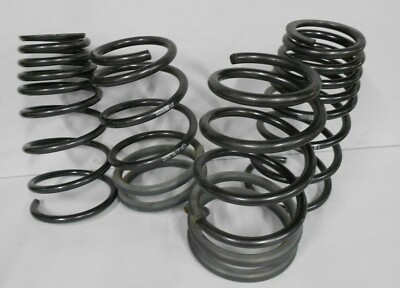

Lowering springs [1999-2003 RX] (1-1.5" drop, front spring is shorter than stock, likely due to the RX300 having a different spring perch)
Lowering springs [2004-2009 RX] (1-1.5" drop, may be ever so slightly stiffer due to the 2nd gen RX weighing a little more)
Lifting springs [2001-2007 Kluger] (1" lift)

Eibach (on 08 RX): More OEM type of ride, but still offers 1.2" of lowering and stiffens up suspension nicely
H&R (on Highlander): Very firm and stiff compared to stock, lowers by ~2", springs coil tightly near top of strut

Eibach is the more sensible DD choice, but the H&R provide a lot more fun even though you sacrifice more comfort for a marginal cornering gain over the Eibachs. I'll add my thoughts on coilovers here once I get some.



Note: To maintain your alignment, you should use the 1st gen strut mounts, everything else can be taken from a 2nd gen
Rear Struts [2008-2009 RX350 AWD / FWD] (Likely identical to 04-07 struts except for the 19mm mounting holes for the knuckle instead of 17mm, which allows for more camber adjustment, specs are the same as 04-07 according to KYB)
Rear Struts [2006-2007 RX400h & Highlander Hybrid] (Similar to 04-07 struts, except the strut body length has been extended by 0.4", the stroke length has also been reduced by 0.4". Spring perch is in the same place)
Rear Struts [2008 RX400h] (Likely identical to the 06-07 RX400h strut, except it has the 19mm holes like the newer 08-09 RX350 ones)
Front springs [2008-2009 Highlander] (Stiffer than stock, ~0.5" lift)
Rear springs [2008-2013 Highlander] (Stiffer than stock, ~2" lift)
Front Struts [2008-2009 Highlander] (Higher spring perch, provides ~0.5" lift)
Front Struts [2010-2013 Highlander] (Higher spring perch, provides ~0.5" lift, option for Bilstein B6, YOU MUST USE 2010-2013 springs & lower isolators with these for the front passenger strut!)
Front Struts [2014-2019 Highlander] (Option for Bilstein B6, test fitment on RX300, fits like 2nd gen strut but with more anti-dive built-in)
Rear Struts [2008-2013 Highlander] (Higher spring perch, provides ~1" lift - option for Bilstein B6, 2004+ end links recommended if 2001-2003 AWD model. DOES NOT FIT 01-07 FWD)
Front Struts [2009-2015 Venza] (Similar to 2008-2009 2nd gen Highlander, except more stroke length and no internal rebound spring)
Front Springs [2009-2015 Venza] (Similar to 08-09 springs, appear to have a slightly stiffer rate, can be bought on Rockauto)
Rear Springs [2009-2015 Venza] (Similar to 08-13 springs, appear to have a slightly stiffer rate, can be bought on Rockauto)
Rear knuckle bushing [1999-2009 RX, 2001-2013 Highlander, 2009-2015 Venza, 1992-2018 Camry]
Rear knuckle AWD [2008-2013 Highlander, 2009-2015 Venza] (Direct fit 04-07, will fit 01-03 with the use of 04-07 rear control arms, ABS senors & rear CV axles if AWD, allows for more camber adjustment due to using our 19mm front strut-to-knuckle bolts)
Front knuckle [2008-2019 Highlander, 2011-2020 Sienna AWD, 2010-2015 RX] (You will need 2011-2014 Dodge Charger inner tie rods & 2nd gen outer tie rods. You will also need 2nd gen brake dust shields, CV axle deflector plates and wheel bearings, make sure hub has right amount of splines)
Front knuckle [2016-2022 RX] (You will need the Charger inners and 4th gen RX outers at the minimum, the stock ball joint will fit but the ABS sensor may needs modification/swapping, no confirmation on CV axle fitment. Uses bolt-in wheel bearing / hub assembly)
Front knuckle [2009-2015 Venza] (Similar to a 2nd gen knuckle, reuses every part except for the wheel bearing and CV axle deflector which is shared with the 01-07 models, Venza stock hub for FWD use only)
Rear sway bar bushings FWD [See 2001-2003 & 2004-2007 categories]
16mm rear sway bar bushings AWD [2001-2007 Highlander, 2009-2015 Venza, 2002-2006 Camry, 2004-2009 RX (Some models)]
Rear sway bar brackets AWD [2001-2013 Highlander, 2009-2015 Venza (Driver's side needs modification to fit), 1999-2009 RX]
23mm front sway bar bushings [2001-2007 Highlander, 2004-2009 RX] (2004-2009 models have updated design with teflon inner coating, this is the preferred part)
Upgraded front sway bar upper brackets [2008-2019 Highlander, 2004-2020 Sienna AWD, 2008-2009 RX400h, 2010-2015 RX350/450h]
Coilovers [1999-2003 RX300] (Front mount and adjust not compatible)
Coilovers [2004-2009 RX] (Best fitment for our cars, 01-03 needs to drill out rear strut mount to M10)
Coilovers [2002-2017 Camry, 2002-2017 ES] (Can fit FWD models, not recc)
Front sway bar end link [2004-2010 Sienna] (14mm thick end link for stock 23mm sway bar)
Front sway bar end link [2018+ Camry] (Alloy substitute link for stock 23mm sway bar)
Aluminum rear sway bar end link [See 2001-2007 FWD & AWD categories]
Front sway bar end link [2007-2017 Camry, 2010-2019 ES350] (Required if you want to run a 2nd/3rd gen front sway bar without rubbing of the end link on the strut, fitment is absolutely perfect. Sway bar end link angle will not sit parallel to the body, but it is identical to that of the respective Camry the part originates from, it is by design)
Front sway bar end link [2007-2009 ES350] (Resembles the above end link, but has a thicker 14mm body vs. 10mm)
26mm front sway bar bushings [2008-2019 Highlander, 2004-2020 Sienna AWD, 2010-2015 RX]
26mm front sway bar bushings [2004-2020 Sienna FWD, 2007-2018 ES] (Bushing does not require "clipping" to fit into the stock lower brackets)
26mm front sway bar [2008-2019 Highlander (non-hybrid), 2010-2015 RX (non-hybrid)] (DOES NOT FIT HYBRID, MAKE SURE TO BUY RIGHT VERSION DEPENDING ON IF YOU ARE FWD OR AWD - AWD bar will work on either FWD or AWD. Hybrid cars after '07 come with FWD bars as indicated by the ORANGE stripe on driver's side, you want a WHITE stripe for AWD!! The FWD/Hybrid bar will contact the transfer case on AWD models!!)
28.5mm front sway bar [2016-2022 RX] (Brackets & bushings are unique to the 16-22 RX, the spacing & size is larger and different so major modification is likely required. Bolts are M10 vs M8)
29mm front sway bar [2020- Highlander] (Subframe has been too drastically changed, the bar cannot fit)
Front sway bar brackets [2009-2015 Venza] (These brackets were designed for the Venza's subframe, therefore they are too tall as a result)


STRUT

Torque:
Strut mount (front & rear 04-07): 59 ft lbs (AFTERMARKET IS LOWER, BE CAREFUL!)
Strut mount (rear 01-03): 29 ft lbs
Strut piston nut (front & rear): 36 ft lbs
Brake line: 14 ft lbs

Bolt info:
Strut piston nut (front): M14 x 1.5, 19mm nyloc flange nut (not reusable)
Strut piston nut (rear): M14 x 1.5, 19mm lock nut (reusable)
Strut mount nut (front & rear 04-07): M12 x 1.25, 14mm nut
Strut mount nut (rear 01-03): M10 x 1.25, 12mm nut

Part numbers:
90080-17217 (Front strut piston nut)
90080-17212 (Rear strut piston nut)
90080-17215 (Front strut mount nut)
90080-17225 (Rear strut mount nut 04-07)
90178-A0002 (Rear strut mount nut 01-03)
90387-15027 (Rear strut piston collar)
48753-33010 (Rear strut plastic dust cap/cover)


SWAY BAR

Torque:
Front sway bar bolt to frame: 12 ft-lbs
Front sway bar end link nut: 55 ft-lbs
Rear sway bar bracket & bushing bolts: 14 ft-lbs
Rear sway bar end link nut: 29 ft-lbs (A little too low IMO - I did 35)

Bolt info:
Front sway bar bolt: M8 x 1.25, 40mm long, 12mm head
Front sway bar end link nut: M12 x 1.25, 17mm head
Rear sway bar bolt: M8 x 1.25, 20mm long, 12mm head
Rear sway bar end link nut: M10 x 1.25, 14mm head

Part numbers:
90080-17224 (Front sway bar link nut)
90080-17227 (Rear sway bar link nut)


REAR SUBFRAME

Torque:
Subframe main nut: 111 ft-lbs
Subframe main bolt: 85 ft-lbs
Subframe bracket long bolt: 59 ft-lbs
Subframe bracket short (middle) bolt: 59 ft-lbs
Subframe bracket diff brace bolt: 134 ft-lbs

Bolt info:
Subframe main nut: M12 x 1.25, 19mm head
Subframe main bolt (into frame): 19mm flat
Subframe bracket bolts: M10 x 1.25, 14mm head
Filler neck body mount bolts: M8 x 1.25

Part numbers:
90179-12099 (Subframe main nut)
90109-12022 (Subframe main bolt into frame)
52217A (Subframe bracket long bolt)
52286 (Subframe bracket short bolt)
90105-14075 (Subframe bracket diff brace bolt)
90179-14019 (Subframe bracket diff brace nut)


KNUCKLE

Torque:
Knuckle-to-strut (front): 177 ft lbs
Knuckle-to-strut 01-07 (rear M15 bolt / 19mm hex): 133 ft lbs
Knuckle-to-strut 08-13 HL or 09-15 Venza (rear M17 bolt / 22mm hex): 214 ft lbs
Rear wheel bearing bolt: 55 ft lbs (04-07 AWD)
Front dust shield bolt: 74 in lbs
ABS sensor (front & rear): 71 in lbs
Axle nut (front 01-07 & rear 04-07): 217 ft lbs
Axle nut (rear 01-03): 159 ft lbs

Bolt info:
ABS sensor to knuckle - M6 x 1.0, 30mm long, 10mm head
ABS sensor to frame - M6 x 1.0, 20mm long, 10mm head
Dust shield bolt: M6 x 1.0, 10mm hex

Bolt sizes (knuckle):
Rear rearward (04-07) - M14 x 1.5, 75mm long, 19mm head, 28x3mm thick washer, 19mm flange nut
Rear forward - ^ Same as above
Trailing arm (01-07) - M12 x 1.25, 80mm long, 17mm head, 23.5x3mm thick washer, 17mm flange nut
Wheel bearing (04-07) x4 - M12 x 1.25, 43mm long, 17mm hex flange head

Bolt sizes (control arm):
Rear rearward (04-07 AWD): M14 x 1.5, 80mm long, 22mm head (Special toe alignment bolts - use OEM or MOOG K100401)
Rear rearward (01-03 AWD): M12 x 1.25, 80mm long, 17mm head + sleeve (Special toe alignment bolts - use OEM or MOOG K100399)
Rear forward (01-07): M12 x 1.25, 90mm long, 17mm head (swap out to bolt 10mm shorter)
Trailing arm - ^ Same as knuckle (swap out to bolt 5mm shorter, will make your life easier)

Bolt sizes (axle nut):
Style 1 (01-07 front, 04-07 rear): M22 x 1.5, 30mm 12-point
Style 2 (01-03 rear): M22 x 1.5, 30mm 6-point


Part numbers (Multiply by 2 if you need to do both sides) -

Strut-to-knuckle bolts:

M17x1.5
90105-107008 (17mm "Type A" bolt - removes ALL camber adjustment, just a regular M17 bolt)
90105-107009 (15.9mm "Type B" 1-dot bolt - STOCK for front of all 04-09s or rear if you have the larger M17 bolts)
90105-107010 (15mm "Type C" 2-dot bolt - I run this on the front and back of my RX and Highlander to give me a little more negative camber adjustment)
90105-107011 (14mm "Type D" 3-dot bolt - Tried these and the camber adjustment is a little excessive)
90178-17002 or 90178-A0027 (Nut, I bought both they are 100% identical)

M15x1.5
90080-10398 or 90105-A0038 (15mm M15 rear strut-to-knuckle bolt, no camber adjustment on these guys)
90080-17213 or 90179-15001 (Nut, both are 100% identical)


Alternative:
MOOG K100401 (Replaces 48409-0E010, 90178-A0001 and 48198-0E020 per kit) - 04-07 AWD ONLY!
MOOG K100399 (Replaces 90119-12126, 48409-32030 and 48452-32030 per kit) - 01-03 AWD ONLY!

Rear rearward, To frame 2004-2007 AWD -
48409-0E010 OR 48409-48020 (Toe alignment bolt)
48198-0E020 (Toe alignment plate 40mm)
90178-A0001 (Nut)

Rear rearward, To frame 2001-2003 AWD -
90119-12126 (Through bolt)
48409-32030 (Alignment sleeve)
48452-32030 (Alignment nut 40mm)

Rear rearward, To knuckle -
90080-11672 (Bolt 04-07)
90080-17223 (Nut, notched)

Rear forward, To frame -
90119-A0015 (Bolt 01-07)
90080-17228 (Nut) OR 190178-A0001 (This will work too)

Rear forward, To knuckle -
90080-11672 (Bolt 04-07)
90080-17223 (Nut, notched)

Trailing arm, To frame -
90080-11695 (Bolt 01-07)
90178-A0011 (Nut)

Trailing arm, To knuckle -
90080-11695 (Bolt 04-07)
90178-A0011 (Nut)

Wheel bearing -
90105-17012 (Bolt 04-07)

CV axle (front 01-07, rear 04-07) -
90080-17238 (Axle nut)

CV axle (rear 01-03) -
90178-22001 (Axle nut)
90252-03014 (Axle nut cotter pin)
90170-10191 (Cv axle flange nut)
90201-10068 (Cv axle flange washer)


Steering:
Steering rack [2004-2007 Highlander - Non HiHy, 2004-2009 RX330/350 - Non 400h] (16:1 ratio, 3 turns to lock. Provides a smooth, supple and isolated feel to the car's steering. These racks are made by JTEKT and are more comfort-oriented than the 01-03 racks, but they are significantly more expensive for some reason. I found this rack a lot less enjoyable to drive with)
Steering boot & Clip [2004-2007 Highlander, 2004-2009 RX] (Longer than 01-03 boot for more flexibility? It also has a larger ID by 2mm to fit the 2mm larger 04-07 rack. Can fit 01-03 rack perfectly fine)
Steering rack [2001-2003 Highlander] (16:1 ratio, 3 turns to lock. Provides a more raw, weighted steering feel to the car which I prefer. These racks are made by Koyo and have more road feel/feedback compared to 04-07 racks as well as being cheaper. These racks can directly fit 04-07 without any modifications, as I found on my RX350)
Steering boot & Clip [2001-2003 Highlander] (Shorter and firmer boot, it'll fit an 04-07 rack but you might need a heat gun to get it on, otherwise it'll fit alright and is long enough to compensate for the longer 04-07 ITRs)
Steering rack bushings [2005-2015 Tacoma] (Replacement poly bushings offered by Nolathane and Energy Suspension will fit 01-07 steering racks and cut out some of the dead zone while steering)
Outer tie rod [2004-2011 Camry] (Same length as an 01-03 tie rod, but has the more modern 04+ taper to fit 04-07 front knuckles, confirmed fitmet with stock inner tie rods on HL FB group)


FWD:
Ultra Racing UR-AR19-030 19mm rear sway bar [2004-2009 Toyota Harrier FWD]
Cusco 924 311 B18 18mm rear sway bar [2004-2009 Toyota Harrier FWD]

AWD:
See 2001-2003 & 2004-2007 categories


Torque:
Tie rod lock nut: 54 ft-lbs
Inner tie rod to rack: 37 ft-lbs
Steering rack to frame: 52 ft-lbs
Outer tie rod to knuckle: 36 ft-lbs
Steering pump to engine: 32 ft-lbs
Intermediate shaft: 26 ft-lbs


Bolt info:
Tie rod nut: M14 x 1.5, 19mm hex
Steering rack bolt: M12 x 1.25, 17mm hex
Steering rack nut: M12 x 1.25, 19mm hex
Power steering line frame bolt: M6 x 1.0, 10mm hex
Power steering cooler frame bolt: M6 x 1.0, 10mm hex




Threads:


Sporty wagon build?:
✅ Wider wheel & tire setup (235/55R18, 18 x 8"), 30mm offset
✅ Thicker sway bars (26mm F & 22.2mm R)
✅ Heavy-duty rear sway bar brackets
✅ Better rear sway bar end links
✅ Lowering springs (H&R and Eibach)
✅ New struts (KYB)
✅ 2nd gen / 3rd gen front brakes
✅ 2nd gen / 3rd gen rear brakes
✅ Vented rear brakes (On '08 RX350)
✅ Roof rack delete
✅ Freer-flowing muffler, resonator & catalytic converter
✅ Freer-flowing y-pipe
✅ ARP wheel studs
❌ Coilovers

Pros:

• Soft handling is gone - more responsive during hard driving
• The car can actually oversteer now, with a predictable throttle lift-off at the limit
• Body roll and nose dive have been reduced heavily
• Less wind noise and better mileage on the highway
• Greater stability and confidence at highway speeds or during emergency maneuvers
• Harder to break traction, tire squeal is lower pitched and happens later
• Exhaust is a lot louder and deeper, but very subtle until you get on it
• Acceleration is more responsive
• More confidence in the brakes with SS lines and bigger rotors / calipers

Cons:

• Unpsrung weight is increased from the heavier brakes, wheels, tires and knuckles
• Slightly harsher ride
• Small bumps can be felt more easily due to stiffer suspension, lower profile tires and wider rims
• Speed bumps jostle car more due to the larger sway bars
• Less compliance and more bump-steer on bumpy/bad roads

Result: The car is a lot nicer to drive! It sits as low as a Camry, and handles a lot better than one too! You wouldn't believe you were driving a 20+ YO 4000 lb SUV down the road. Lots of handling potential has been gained without a loss of practicality or a big hit in comfort. I chose to go with bigger sway bars instead of stiffer springs or coilovers to retain a lot of comfort while reducing a huge amount of body roll. The rigidity of the chassis and the feedback of the hydraulic steering can be appreciated more as well.

Off-road build?:
❌ Lifting springs
❌ 2nd gen rear struts & 2nd/3rd gen front struts
❌ Disconnected sway bars
❌ Mud tires
❌ Skid plate
❌ Bull bar
❌ Sienna 150A alternator
❌ 94R battery
❌ Snorkel

Result: People seem to be happy with their Highlanders off road! I would never do it due to the unibody design and Camry underpinnings, but they do seem to make it work.


My favourite performance mods in order:

Addco 2109 22.2mm rear sway bar & My "MKII" custom rear sway bar brackets
- Transforms the Highlander into a lift-off oversteering beast at the limit. Stiffens up the rear and allows for greater turn in, this is what made the car the most fun to drive. My custom brackets tie into more of the frame and don't flex like the stock AWD ones, which allows for full sway bar potential. My brackets also use a universal bushing for cheaper and easier to find replacements.

AWD 2nd gen 26mm front sway bar
- Keeps the oversteer in check and keeps the front flat while cornering, increases the car's limit before traction is lost. Surprisingly good addition for our AWDs without cutting down on that oversteer. Bonus: Comes with heavier duty brackets & bushings are easier to source out. Brackets and bushings can be found from as far back as 2004 to 2020 on the Sienna. Even w/o the rear bar, the front bar with our front suspension helps keep the camber angles in check which is why I'm guessing it doesn't induce more understeer.

H&R RX300 lowering springs & KYB struts
- Reduces that annoying nose dive upon braking and acceleration. Lowers the center of gravity for better handling and works in conjunction with the sway bars to keep the car flat and sporty. The KYB Excel-G struts were a nice combination for these springs considering my blown factory struts had 240k km on them!

Custom exhaust
- A nice exhaust that I pieced together helps me enjoy the sound of the 1MZ-FE which keeps me entertained while I drive the HL. The exhaust is lighter and less restrictive than stock, while having an OEM+ appearance as well as no drone. Just the way I like it! Opening it up results in a nice, throaty sound that is not overly loud at all. Cruising is a mellow and deep note.

2nd gen brakes (front & rear)
- The stock Camry brakes weren't cutting it. Now that my car can handle a lot better, it deserves some better brakes that don't hot spot. These 2nd gen brakes are a lot beefier and should not fade under any normal circumstances due to how massive they are for the size and weight of our 1st gens. I feel like I won't be needing to do as many brake jobs in the future as well. Rear alloy calipers cut down weight, and the Akebono caliper's design makes servicing a lot less of a hassle! I prefer the more bitey "GG" rated Raybestos EHT pads over the "FF" rated Akebono ProACTs, but they're both solid.

Roof rack delete
- Now that the 2014 RX is the new "hauling / trip" vehicle for the kayaks and short errands, the Highlander is reserved for the dirty jobs that usually involve loading up the entire interior's volume with crap and going for super long highway drives. Knowing this, I figured I'd take the roof rack off to lower the center of mass and help improve highway mileage. Taking the rack off shed ~20 pounds, cut down on wind noise and certainly improved the look of the car in my opinion.



My favourite "daily" mods:

Dashcam setup
- My hardwired Viofo front & rear cam setup is the no. 1 critical addition to commuting. These bad boys keep me covered from any of the crazy crap that occurs on the road. Optional bonus includes: watching said dashcam clips is entertaining

Pioneer AVH-2300NEX
- Super essential creature comfort on a daily drvier. Load up some tunes and play them on your commute, use Waze to spot cops and report hazards - all controlled by a nice touch screen. Bonus includes: Hands-free calling, a reverse camera and a built-in amp to help bring out some life in the JBL speakers.

Buick Park Avenue horns
- We all know how wimpy Toyota horns are, and when my original horns died - there was only one option. Buick horns running straight off battery power with a 30 amp relay deliver the appropriate amount of volume for any distracted driver who dares make the mistake of drifting into your lane.

3MZ-FE revised valve cover
- Having to constantly add oil is not fun, and cleaning up leaking oil in your engine bay and on the floor is even less fun. The "gen 2.5" 3MZ cover wasn't exactly the latest edition, but it eliminated my oil burning issues I had with my old cover. I'm sure the ol' 'Lander enjoys this mod as much as I do.

LED Hybrid Taillights & LED third brake light
- A good safety mod as well as an aesthetically pleasing one. Bright LEDs help your visibility while braking. The Hybrid tails have better coverage & brighter turn signals and reverse lights as well due to the design of the housing. Not having to change bulbs and worry about ground wires is also nice. These LED assemblies really help modernize the car's appearance.

Rubber floor mats & trunk liner
- Salty, slushy carpet during the winter is no fun. Getting WeatherTechs was a little pricey but dealing with that hassle is far worse. I just leave them in all-year and they work beautifully. Equally as important is a bucket-style rubber trunk liner. It fits the Highlander's trunk perfectly and helps keep my trunk clean. It also has a nice grippy surface so it helps keep items in place and reduces NVH.

LED footwell lights & LED interior lights
- I never knew I wouldn't be able to live without these until I installed them into my car. They fade on and off with the dome light when you open the door - which completes that OEM+ feel that I crave. These help give the car a more luxurious and modern feel, while helping me locate the parking brake and pedals while entering my car at night. It also comes in handy if I drop something from my seat.

Sound deadening
- A little bit of extra weight worth of sound deadening goes a long way. I stuffed this stuff into all four doors, the trunk lid, the spare tire area, the rear wheel wells and behind rattling trim panels. The result? No more rattles at all and a very quiet ride! The fun part was seeing my passengers (EVERY single one of them!) who are not car people at all ALL notice the day after I installed it! It really makes a big difference in the NVH department and the car is a lot more Lexus-like in the way it handles road noise. Tire noise, car horns & wind noise have been reduced quite a bit. The original speakers can be appreciated more & the doors also sound nicer when you shut them.

_

Drivetrain:

Rear differential [1999-2000 RX300, 2001-2003 Highlander] (Rare optional Torsen Type-2 limited slip differential marked “17TU”, offered only on models without traction control. Can be made to fit any 2001-2013 Highlander or 1999-2009 RX by swapping / removing side flanges. Legend has it that eBay sellers will send you an open diff 3 times before you get an LSD!)

Rear differential [1999-2009 RX, 2001-2013 Highlander] (Standard open diff marked “17SU”. Can be made to fit any car in the range by swapping / removing side flanges)

Rear diff side flange 41309-20020 [1988-1993 Toyota Celica, 1999-2000 RX300 - No LSD] (Larger bolt spacing)

Rear diff side flange 41309-20030 [1990-1992 Toyota Celica All Trac, 1999-2000 RX300 - LSD] (Unknown bolt spacing - probably same as regular 99-00)

Rear diff side flange 41309-32020 [1996-2005 RAV4, 2001-2003 Highlander, 2001-2003 RX300 - No LSD] (Smaller bolt spacing)

Rear diff side flange 41309-42010 [1996-2004 RAV4, 2001-2003 Highlander - LSD] (Unknown bolt spacing - probably same as regular 01-03)

CV axle snap ring 90520-22012 [1999-2009 RX, 2001-2013 Highlander - No LSD]

LSD CV axle snap ring 90521-28004 [1999-2000 RX, 1996-2004, RAV4 2001-2003 Highlander - LSD]

Rear CV axle [1999-2000 RX] (Needed for RX LSD swap on a 2001-2003 if you don’t want to reuse your old diff side flanges, fits 01-03 rear knuckle)

Rear CV axle [2004-2007 Highlander, 2004-2009 RX] (Required if you want to swap to 2004-2013 rear knuckles & brakes)

Front CV axle [2001-2007 Highlander AWD] (Standard 26-spline CV axle. Can fit 1st gen as well as the 2nd gen knuckles

Front CV axle [2004-2009 RX AWD] (These would theoretically let you run the 30-spline FWD hub assemblies on an AWD Highlander. It would increase your used knuckle selection from only AWD 01-13 Highlanders to the 09-15 Venza, 04-20 Sienna AWD, 2010-2015 RX and 2014-2019 Highlander. Possibly even the 2016-2022 RX)

Transfer case [2001-2003 Highlander, 2007-2009 RX] (Viscous coupling unit, can prob swap on 04-07 Highlander and 04-06 RX)

Transfer case [2004-2007 Highlander, 2004-2006 RX] (Standard T-case)


Torque:
Plugs - All: 36 ft-lbs
Breather (Differential): 15 ft-lbs
Front CV axle nut: 217 ft-lbs
Rear CV axle nut: 217 ft-lbs

Bolt info:
Plugs - Differential: M18 x 1.5, 10mm allen head (Can be swapped for 24mm hex down below, highly recommended)
Plugs - Transfer case: M18 x 1.5, 24mm 6-point hex
Breather (Differential) - M16 x 1.5, 17mm hex
Axle nut: M22 x 1.5, 30mm 12-point hex

Part numbers:
Gasket - 12157-10010
Fill (24mm hex) - 90341-A0002
Drain (24mm hex, tall magnet): 90341-18040
Drain (24mm hex, short magnet): 90431-18057
Breather (Differential) - 90930-03129
Breather (Transfer case) - 90930-03133
Alternative drain plug (17mm hex, magnetic) - Cummins 3924147


Threads:
https://www.toyotanation.com/threads...#post-14533184


-

Interior:
Auto-dimming rearview mirror [2004-2007 Highlander, 2004-2009 RX, Various]
Heated steering wheel [2015 RX350] (YES! It works! You can retrofit this and keep the factory clockspring and airbag detonator on an 01-03)
Cabin air filter tray [2001-2005 GS300/430, 2001-2006 LS430, 2002-2010 SC430]
Cabin air filter [1998-2000 GS300/400]
Rear all-weather mat [2008-2013 Highlander] (A little tight, but fits)
Armrest [2004-2009 RX] (Fits, but I feel it is a downgrade from a 99-03 RX or 01-07 HL because it is shorter, skinnier and less padded)
Armrest [2001-2007 Highlander, 1999-2003 RX300] (Despite different part numbers, the armrests appear and fit the same)
Front headrest [2001-2007 Highlander] (Interchangeable. 04-07 are more large and fold backward instead of forward - colour is same)
Front headrest [2004-2009 RX] (Very similar to 04-07 HL ones, slightly smaller)
Front headrest [2010-2015 RX] (While it fits the spacing, it doesn’t latch in place properly. Also a downgrade as there’s less padding and they don’t slide forward or back)
Rear headrest [2004-2009 RX] (Won’t fit an 01-03 HL)
Rear all-weather mat [2014-2019 Highlander] (Interferes with console)
Steering wheel [2004-2008 Solara] (Fit perfectly on a 2002 after the detonator was swapped and CC was adapted)
Front seats [2004-2009 RX] (Physical fit for 01-07! Requires re-wiring for heater and power, side air bag connector is the same. Resembles 04-07 front seats)
Rear seats [2004-2009 RX] (Does not fit 01-03, but will fit 04-07)
Front seats [1999-2003 RX300] (Requires rewiring for heat and controls, air bag same)
Rear seats [1999-2003 RX300] (Custom brackets required, see PetayV8’s post for more detail)
Shift knob [1999-2003 RX300] (Woodgrain knob for the RX - fits 2001-2007 models. Wood texture is slightly different than ours)
Sunvisor [1999-2003 RX] (Won't fit without 3D printing a custom mount clip. I highly recc not to bother with these. They resemble an 01-03 HL sunvisor, but the material is cloth instead of vinyl. They have a different electrical connector too, but mount up to the car properly. The sunvisor clip is 10mm instead of 12mm. These extend out but they are a little flimsy)
Sunvisor [2005-2011 Avalon] Can fit see PetayV8’s post. Resembles an 04-09 RX visor w/ 01-07 mounting
Trunk lift supports [2005-2012 Nissan Pathfinder] (A little strong, but much better quality as well as cheaper than the junk they offer for our cars)
Blower motor [2004-2009 RX, 2004-2010 Sienna] (Too small to fit)
Turn signal relay [2004-2009 RX, 2006-2007 Highlander Hybrid] (More forgiving when you go to modify it to accept LED bulbs)
Door courtesy lights [2004-2009 RX] (Plugs in, fits and works but does not follow the contour of the door as well, but it’s close)
Gauge cluster [2006-2007 Highlander Hybrid] (Won't fit 01-07, wiring, faceplate and more is different)
Subwoofer [1999-2003 RX300] (For 01-03 only! 4.5" woofer in a ported box. Bolts down to the front passenger seat bracket with the two front bolts, but not the rear as the RX300 has a different floor. It works great for how cheap they are at the junkyard! Will not work with 04-09 RX front seat or other height adjustable seats)
Cluster cover 83852-48550 [2006-2007 Highlander Hybrid] (Lexus-style smoked gauge cluster cover, it fits perfectly and makes the instrument panel dark when the car js off, thanks @AlexMan for confirming!)
Cargo cover [2001-2003 & 2004-2007 Highlander] (Not compatible between 01-03 and 04-07)


Air filters:

AEM:
DryFlow - no oil (engine): 28-20260 AEM DryFlow Air Filter

K&N:
Oiled filter (engine): Replacement Air Filter
Cabin filter (stock): Cabin Air Filter
Cabin filter (taller - REQ tray size upgrade): Cabin Air Filter

_


Threads:

_

Wheel & Tire:

(Note: 2006-2007 Hybrid models require 17” wheels to clear the brakes up front)

Wheel Specs (Stock)
Size: 16 x 6.5"
Offset: 35mm
Bolt pattern: 5 x 114.3mm
Hub bore: 60.1mm

Tire Specs (Stock)
Size: 225/70R16
Pressure: 30 psi
Load & Speed rating: 101S


Warning: Some have had issues w/ stock 1gen caliper rubbing on back of rim (In yellow)

1999-2003 RX300 16x6.5” rims
2004-2009 RX330/350 17x6.5” rims
2004-2009 RX330/350 18x7” rims
2013-2015 RX350 19x7.5” rims
2010-2013 RX350 18x7.5” rims
2008-2013 Highlander 19x7.5” rims
2008-2013 Highlander 17x7.5” rims
2014-2019 Highlander 19x7.5” rims
2020-2023 Highlander 20x8” rims
2016-2022 RX350 18x8” (30 offset) rims (Only 0.06” of thread engagement vs stock 0.35", extended wheel studs recommended)
2023- RX rims rims


ARP 100-7715 wheel stud kit [2001-2005 IS300] (Fits perfectly on the front & rear, you will need 4 kits to do a whole car. Be careful as certain cheap aftermarket hub assemblies might not have conventional wheel studs. Note: You need to run the longer nuts w/ these)

Wheel stud 90942-02078 [2003-2007 Matrix AWD] (WON'T FIT! Stud's shank extends past the rotor)

Wheel stud 90942-02052 [Newer trucks, 2016-2022 RX] (5mm longer, lets you run the newer RX rims, longest factory Toyota studs that fit)


Threads:

-

Braking:
Goodridge 21550 stainless steel brake lines [1999-2003 RX300] (Confirmed fitment on 2001-2003 AWD, rear lines are identical, fronts are a little longer)
Safebrake LEX-XU30.4W stainless steel brake lines [2004-2009 RX] (Same brake lines as an 04-07 AWD Highlander, has factory-style fitment tabs - REALLY nice!)
Front brakes "Highlander BBK" [2008-2019 Highlander, 2011-2020 Sienna, 2010-2015 RX, 2015-2021 NX, 2020-2021 Avalon TRD, 2020-2023 Camry TRD] - 328x28mm rotors, 17" wheels minimum required (GREAT BRAKES), no bending of dust shield required 2001-2007, stock brake lines fit perfectly
Front brakes [2016-2022 RX] - Same as above but uses M14 x 1.5 mounting bolts
Rear brakes "Highlander BBK" [2008-2013 Highlander] - 309x10mm rotors Direct fit for 2004-2007 models, 2001-2003 models need to swap to 04-13 rear knuckles, modify driver’s parking brake mount, swap to 2004-2007 rear control arms, 2004-2007 CV axles and 2004-2007 rear toe bolts, dust shield needs to be bent backward if using stock 04-07 one. Stock brake lines fit perfectly - 16” wheels minimum required - stock lines fit
Rear brakes "Highlander BBK" [2014-2019 Highlander, 2011-2020 Sienna, 2010-2015 RX] - Reuse the 2nd gen rear rotors with 3rd gen Highlander rear calipers and pads. This caliper is a little less beefy, and the pad is slightly shorter but taller. The benefit of this swap compared to the 2nd gen rear calipers is that the 3rd gens are way more common to find used, and pad choices are better as it's a highly used part. 17" wheels minimum required, stock lines fit
Front brakes [2002-2003 ES300, 2004-2006 ES330] - Can run stock 296x28mm rotors & 16" wheels, but dual piston like 2nd gen brakes
Front brakes [2004-2009 Lexus RX, 2006-2007 Highlander Hybrid] - Larger rotor (319x28) and single piston caliper, same piston diameter - 17" wheels minimum required
Front brakes [2020-2023 Highlander, 2023+ RX] - 340x28mm rotor, similar cast iron dual piston caliper to 2nd gen except takes different pads, uses M14 x 1.5 mounting bolts instead of M12 x 1.25, so knuckle may have to be drilled, unfortunately requires an 18" wheel
Front brakes [2021-2023 RAV4 Prime, 2022+ Lexus NX450h+] - 328x34mm rotor, similar cast iron dual piston caliper to 2nd gen except wider to accommodate a 6mm thicker rotor, takes same pads, uses M12 x 1.25 mounting bolts like usual, requires 17" wheel
Front brakes [2021-2023 Sienna] - 328x34mm rotor, similar cast iron dual piston caliper to the RAV4 Prime and newer gen NX except wider to accommodate a 6mm thicker rotor, takes same pads, uses M14 x 1.5 mounting bolts instead of M12 x 1.25, requires 17" wheel
Front brakes [2023+ RX500h F-Sport Performance] - 400mm 2-piece rotor, fixed 6-piston aluminum calipers. Uses M14x1.5 caliper bolt, requires 21" wheel
Front brakes [1993-1998 Supra] - Test fit by Lexus RX330 owner, fitment was unsuccessful
Front brakes [2007-2023 IS350] - Test fit on 3rd gen Sienna, the calipers weren't possible to mount due to the clocking of the caliper, even with multiple custom bracket designs
Front rotors [Supra TT] - Test done by RX330 owner with 2nd gen front calipers. Directional rotors. They had to be machined thinner to fit the calipers properly

Vented rear brakes [2006-2014 IS350 & 2010-2015 RX (EURO)] - 310x18mm rotors. Fitment identical to 2004-2013 models. Parking brake works perfectly and can be adjusted, hub fitment is identical to stock. Like the 2nd gen rear brakes, you will need an 04-07 or the respective knuckles, and you will need to either modify or use 2nd gen or Venza rear dust shields, the calipers require 2.5mm washers behind the mounting bolts to clear, and are based off of 2014-2019 Highlander ones. They share the same hardware & pads. Stock brake lines fit perfect - 17" wheels required to clear

Brake line crush washer 47389-50020, 47389-50021 [Various Toyotas 90s-Present] (Stock aluminum M10 banjo bolt washer. 10.2mm ID, 15mm OD, 0.8mm thickness)
Brake line crush washer 90044-01079 (Stock cooper banjo bolt washer)

Brake line crush washer GM 21012386 [Various GM cars 80s-Present] (Cheap copper M10 banjo bolt washer. 10.2mm ID, 14.4mm OD, 1.5mm thickness - quality only OK but works fine)
Brake line crush washer Raybestos G1247 (Cheap copper M10 banjo bolt washer. 10.2mm ID, 16mm OD, ? thickness - Have not tried yet)


Bleeder cap 31478-0R010 [RAV4, Camry, Matrix, Avalon] (A full-coverage bleeder screw cap for the front & rear calipers of our cars, works with the stock front & rear calipers, or the front 2nd gen calipers)

Bleeder cap 31478-48020 [2008-2019 Highlander, 2010-2015 RX] (A full-coverage bleeder screw cap for the rear of 2nd gen and 3rd gen Highlander calipers)


^ These two bleeder caps can be interchanged between the two calipers, however they have a more snug fit on their proper bleeder screw application


Torque:

Front brake caliper bolt: 77 ft lbs
Rear brake caliper bolt 04-07: 58 ft llbs
Rear brake caliper bolt 01-03: 34 ft llbs


Bolt info:
Brake caliper bolt (front & rear 04-07): M12 x 1.25, 30mm long, 17mm hex
Brake caliper bolt (front & rear 01-03): M10 x 1.25, 30mm long, 14mm hex


Threads:

_

Cosmetic:
Hybrid LED taillights [2006-2007 Highlander Hybrid] (Connectors & custom wiring harness required)
LED third brake light (Seal must be fabricated)
DIY Roof rack hole covers (Minor fabrication required)
Reverse camera grommet [2001-2007 Highlander, 1999-2003 RX, 2004-2009 RX (Same part, different look)]
Badges [1999-2003 RX300] (Does not fit 2001-2007)


Threads:

_

Misc:

Trailer hitch [1999-2003 RX300] (Fitment for 01-03)
Trailer hitch [2004-2009 RX] (Fitment for 04-07)
Maruko snail horn (Better) [2002+ 4Runner, 2002+ SC, 2006+ IS, 2007+ LS, 2015+ RC, 1998+ GS], [SUBARU: 2007-2009 Forester]
Denso snail horn (Easier to find) [2001+ Camry, 1997+ ES, 1999+ RX, 2014+ Highlander, 2009+ Venza, 2005+ Avalon, 2003+ Sienna, 2001+ Tacoma, 2000+ Tundra, 2004+ Solara, 2001+ Sequoia]
Transmission mount [2004-2009 RX, 2008-2013 Highlander V6, 2004-2010 Sienna]
Transmission mount [2010-2015 RX350/450h, 2014-2019 Highlander, 2007-2017 Camry, 2007-2018 Avalon, 2011-2020 Sienna, 2009-2016 Venza, 2007-2018 ES350/ES300h] (Fit perfect other than a minor modification, slightly different shape than original. Smooth shifts like new again. Required me to grind off the mounting tab on the top for fitment. Fits U140F and U151F as tested)
Torque Strut Mount (Dogbone) [2006-2007 Highlander Hybrid, 2006-2008 RX400h] (Fits all 01-07 V6)
Engine mount [Any 2GR-FE car] (The mount is taller than an MZ engine mount, I wouldn't risk trying to run one)
Air box [1999-2003 RX300] (Close, but the mounting holes don’t align to the Highlander)
Air box [2004-2009 RX, 2008-2013 Highlander] (Mounting holes don’t line up, and neither do the vacuum ports)
Fuel filler neck [2007-2009 RX350] (DOESN'T FIT! Not even close)
Fuel filler neck [2004-2007 Highlander] (Similar in shape to 01-03 Highlander one but stainless steel. Vent hoses are different. Fits with minor modifications)
Windshield washer nozzle [2004-2007 Highlander] (Mist type vs 01-03 “Stream” type, super easy swap)
Gas cap [2007-2015 RX350] (Single-click design vs the Highlander's multi-click. Fits stock filler neck but I might be swapping to this if the RX350 filler neck installation goes according to plan)
Gas cap seal [77316-33042] (Same part as original for 01-07. Nearly 1/3 the price)
Fender liner [2006-2007 Highlander Hybrid] (Carpeted inner fender vs plastic on non HiHy)

Threads:

_

Cooling:
Tow package radiator
Tow package fans
Transmission oil cooler
Power steering cooler [2001-2007 Highlander, 2004-2009 RX] (3 ft of 3/8" power steering/transmission hose required)

Threads:


Engine:
VVT Oil Control Valve [2AR-FE] (Fitment for 1MZ and 2AZ engines, will run fine and data taken from Techstream shows flawless performance)

_

LEGEND:

(Brackets) - Extra details
[Brackets] - Cars this part can be obtained from, brand will be added in CAPITALS: if it is not from Lexus/Toyota
Underline - Currently installed on my car
Green - Direct upgrade confirmed fit
Blue - Untested fitment
Bold - OEM part
Yellow - Not 100% direct bolt on, some fabrication required
Orange - POSSIBLE but not recommended due to difficulty / need to buy other parts
Red - The part will not fit


2001-2003


Cosmetics:
04-07 Headlights (All bulbs will fit and plug in, perfect body fitment on 01-03)
04-07 Tailights (Passenger side rear side marker socket needs to be modified, otherwise, all bulbs will fit and plug in)
04-07 Grille (Has to have matching 04-07 bumper for bottom tabs to line up)
04-07 Front Bumper (Some non-structural holes don't line up, but it works)
04-07 Rear Bumper (Some non-structural holes don't line up, but it works)
04000-14253 Sport accelerator pedal (78120-48070 throttle assembly required for 04-07 models in addition to the sport pedal itself, see post for detals)
47121-53010 Sport brake pedal

Threads:


__

Braking:
Rear Calipers [1999-2003 RX300] (41mm piston vs 38mm) - AWD MODELS ONLY, will fit and take the stock rotor
Front ABS sensor [2004-2007 Highlander, 2004-2009 RX] (Plugs in and performs perfectly on 01-03 models according to live data tests & resistance test)
Rear ABS sensor [2004-2007 Highlander AWD, 2004-2009 RX AWD] (Plugs in and performs perfectly according to live data tests. These allow you to retain ABS if you swap to 04-07 CV axles & 04-13 rear knuckles)


Threads:

__


Steering:

Gates 349770 [1988-2002 Corolla] (90 degree elbow used to convert our power steering rack return line to all rubber, thank you Ralph Spoilsport for this discovery!)

Front knuckle, hub & wheel bearing assembly [2004-2007 Highlander] (Couldn't find one for a 2001-2003, fit was identical to my original parts other than the outer tie rod. Solution is to run 2004-2010 Sienna outers. If you want to change both, you will need 2004-2007 Highlander inners or 2004-2010 Sienna inners, and 2004-2007 Highlander outers)

Front knuckle, hub & wheel bearing assembly [2008-2013 Highlander] (Unlike the rears, these front knuckles resemble do not fully resemble 2004-2007, but they are beefier. The only difference is that you will need 2011-2014 Dodge Charger inner tie rods, 2nd gen outer tie rods, different brake dust shields, wheel bearings and a deflector/dust cover for the CV axle. Everything else fits like hub, ABS sensor, ball joint, strut and CV axle)

Rear knuckle, hub & wheel bearing assembly [2004-2007 Highlander, 2004-2009 RX] (The 2004-2007 Highlander rear knuckles are beefier, have bolt-on wheel bearings, and they allow you to run the 08-13 rear brakes. You will also need 2004-2007 rear control arms, ABS sensors, rear CV axles and 2004-2013 Highlander or 2009-2015 Venza rear dust shields if you want to retain the parking brake. Saving the parking brake requires a hole on the driver's side shield to be bored out in order to bolt on the cable)

Rear knuckle, hub & wheel bearing assembly [2008-2013 Highlander, 2009-2015 Venza] (This version fits like the 04-07 but is even thicker. They include a larger dust shield/backing plate to accomedate the big 2nd gen rear brakes without having to trim anything. The Venza dust shields are slightly different compared to the Highlander ones, they sit a little closer to the larger 08-13 rear caliper, 04-07 ABS sensors will work fine with these knuckles)

Intermdiate shaft [2004-2009 RX] (Slightly longer than 01-03 intermediate shaft, otherwise fitment was identical, bought as finding a suitable aftermarket replacement wasn't easy)


__


Suspension:

Rear sway bar bushings 16mm FWD [1997-1999 Avalon, 1997-2001 Camry, 1999-2003 Solara (V6 or Convertible), 1997-2001 ES300, 2004-2009 RX FWD]

Rear struts [2004-2007 Highlander] (These work fine, but you need to use an 01-03 strut mount as the 04-07 strut mount's studs are a larger diameter and would require drilling. Another issue is the sway bar end links are a little shorter on the 2004-2007 models, but they still fit. This causes the sway bar to be pointing down a little bit due to the positioning being lower on the 2004-2007 struts - making the sway bar a little softer.)

Front Strut Boot / Upper Isolator [2004-2013 Highlander] (Fit like a glove)

__


AWD:
K750612 rear sway bar end links [FORD: 2011-2018 Fiesta (Original car application - Front, beefier construction, optional ALLOY construction)
K750098 rear sway bar end links [NISSAN: 2007-2019 Versa, 2009-2014 Cube, 2015-2019 Micra] (Original car application - Front, beefier construction, optional ALLOY construction)
Addco 2109 22.2mm rear sway bar [2001-2003 Highlander AWD]
Hardrace Q0550 17mm rear sway bar [2001-2003 RX300 AWD]
Moog K100399 rear toe bolts [2001-2005 RAV4] (Has the sleeve to fit 01-03 rear control arms - untested fitment)



FWD:
See 2001-2007 category ^

Threads:


__

Electrical:
130A Tow Package Alternator
150A Sienna Alternator [2004-2006 Sienna] - (3.0/3.3 ONLY, adapters required for 3.0)

Threads:

__

Exhaust / Intake:
Magnaflow 91005 Catalytic Converter (Welding required)
Total Flow TF-SYP2524 Y-Pipe (Welding required)
New Exhaust Hangers over Muffler (Drilling required)


Bolt info:
Exhaust flange lock nut: M10 x 1.25, 12mm hex
Set stud nut (Cat converter): M12 x 1.25, 14mm hex
Bolt (For use w/ spring - near cat & rear muffler): M10 x 1.25, 14mm hex
02 sensor: M18 x 1.5, 22mm hex


Part numbers:
90178-A0002 (Lock nut in case factory flange nuts have to be cut off)
90080-17187 (Set stud nut - used on cats)
90501-A0005 (Exhaust spring for "Rear" & "Center")
90109-A0023 (Exhaust spring bolt for "Rear" & "Center")
17451-0A010 (Muffler flange gasket "Rear")
17451-22060 / 17451-0D050 (Y-pipe to cat flange gasket "Center")


Threads:

__

Engine (1MZ only):
2005+ Revised 3MZ Valve Covers [2005-2007 Highlander, 2005-2006 Sienna, 2005-2006 RX330, 2005-2006 ES330, 2005-2008 Solara, 2005-2006 Camry SE V6, 2006-2008 RX400h, 2006-2010 Highlander Hybrid]
3MZ Dogbone / Torque Strut Mount [2004-2007 Highlander, 2004-2006 RX330]

Threads:


__

LEGEND:

(Brackets) - Extra details
[Brackets] - Cars this part can be obtained from, brand will be added in CAPITALS: if it is not from Lexus/Toyota
Underline - Currently installed on my car
Green - Direct upgrade confirmed fit
Blue - Untested fitment
Bold - OEM part
Yellow - Not 100% direct bolt on, some fabrication required
Orange - POSSIBLE but not recommended due to difficulty / need to buy other parts
Red - The part will not fit


2004-2007

Cosmetics:
See 2001-2007 category ^

__

Braking:

Rear Calipers [2004-2009 Lexus RX] (41mm piston vs 38mm)
Rear Calipers & Rotors [2008-2013 Highlander] (41mm piston vs 38mm, aluminum construction, much larger pad surface, 310mm diameter rotor vs 288mm)
Rear Calipers & Rotors [2014-2019 Highlander, 2010-2015 RX, 2011-2020 Sienna] (40mm piston vs 38mm, aluminum construction, the caliper is slightly smaller than 08-13, but it has more lower swept area and length. These work great and are easier to find parts for incl the pads. You will need to use a 08-13 rear rotor to retain the parking brake
Rear Calipers & Rotors [2006-2013 IS350, 2006-2011 GS] (Big 44mm piston vs 38mm, 18mm vented rotor vs 10mm solid, 310mm diameter rotor vs 288mm. The IS rotor perfectly fits the hub and allows use and adjustment of factory parking brake. You will need Euro-spec 2010-2015 Lexus RX350 calipers to do the swap
Rear ABS sensor [2008-2013 Highlander AWD] (Tried to pull this off on my '08 RX350 AWD because they're around half the price and more corrosion resistant. The project ended up being a massive fail as I couldn't get the sensor to play nice with my tone rings. These sensors cannot be made to work, they are also not as magnetic as regular 04-07 sensors.)


Threads:


__

Electrical:
130A Tow Package Alternator
150A Sienna Alternator [2004-2006 Sienna] - (3.3 ONLY)

__


Steering:


Gates 349770 [1988-2002 Corolla] (90 degree elbow used to convert our power steering rack return line to all rubber, thank you Ralph Spoilsport for this discovery!)

Front knuckle, hub & wheel bearing assembly [2008-2013 Highlander] (Unlike the rears, these front knuckles resemble do not fully resemble 2004-2007, but they are beefier. The only difference is that you will need 2011-2014 Dodge Charger inner tie rods, 2nd gen outer tie rods, different brake dust shields, wheel bearings and a deflector/dust cover for the CV axle. Everything else fits like hub, ABS sensor, ball joint, strut and CV axle)

Rear knuckle, hub & wheel bearing assembly [2008-2013 Highlander, 2009-2015 Venza] (Heavier-duty construction & larger brake dust shield, uses front strut-to-knuckle bolts for more camber adjustment, fitment is otherwise identical)

__


Suspension:

AWD:
Aluminum rear sway bar end links [FORD: 2000-2011 Focus (Original car application - Front, beefier construction, optional ALLOY construction)
Addco 2109 22.2mm rear sway bar [2001-2003 Highlander AWD]: (You can't run your spare tire with this sway bar)
Ultra Racing UR-AR49-2148 19mm rear sway bar [2004-2009 Toyota Harrier AWD]
Moog K100401 rear toe bolts [2011-2018 RAV4] (Perfect fit on an 04-07 AWD, bonus of an incl grease fitting and a LOW price for a good product)


Threads:



FWD:
Rear sway bar bushings FWD [1999-2003 Solara (I4 Coupe), 2004-2013 Highlander (FWD), 2009-2015 Venza (FWD)]

Rear sway bar 16mm [2001-2003 Highlander FWD, 2004-2009 RX FWD]

See 2001-2007 category ^

BOTH:
26mm front sway bar [2008-2019 Highlander, 2010-2015 RX]: DOES NOT FIT HYBRID, MAKE SURE TO GET RIGHT VERSION
Cusco 924 311 A25 25mm front sway bar [2004-2009 Toyota Harrier]: DOES NOT FIT HYBRID, FITS FWD & AWD

__

MAINTENANCE:


Engine oil:

2001-2007

1MZ & 3MZ: 4.5 L (Without filter) / 4.7 L (With filter)
2AZ: 3.6 L (Without filter) / 3.8 L (With filter)

Spec: 5W30
What I run: Mobil 1 5W30

Drain plug: M12 x 1.25, 14mm 6-point hex, switched to Votex DP006 stainless steel magnetic plug made in USA

__

Coolant:

1MZ (2001-2003)

Standard capacity: 9.4 L
W/Tow package: 10.1 L
W/Rear heater: 10.7 L
W/Heater & Tow pkg: 11.4 L

Spec: Toyota Long Life Coolant
What I use: Toyota Super Long Life Coolant

3MZ (2004-2007)

Standard capacity: 9.4 L
W/Tow package: 10.1 L
W/Rear heater: 10.7 L
W/Heater & Tow pkg: 11.4 L

Spec: Toyota Super Long Life Coolant

2AZ-FE (2001-2007)

Standard capacity: 6.4 L
W/Tow package: 7.1 L
W/Rear heater: 7.7 L
W/Heater & Tow pkg: 8.5 L

Spec: Toyota Super Long Life Coolant

__

Power Steering:

2001-2007

Total capacity: 750 ml (Estimated)
W/Power steering cooler: 900 ml (Estimated)

Spec: Dexron III
What I use: Dexron VI, Synthetic
What others have used: Toyota T-IV, Valvoline Maxlife, Redline D4

__

Automatic Transmission:

U140F (2001-2003 AWD V6, 2001-2007 AWD I4)

Drain & Fill: 3.9 L
Spec: Toyota T-IV
What I use: Toyota T-IV

U151F (2004-2007 AWD V6)

Drain & Fill: 3.5 L
Spec: Toyota T-IV

U151E (2004-2007 FWD V6)

Drain & Fill: 3.5 L
Spec: Toyota T-IV

U140E (2001-2003 FWD V6)

Drain & Fill: 3.3 L
Spec: Toyota T-IV

U241E (2001-2007 FWD I4)

Drain & Fill: 3.3 L
Total capacity: 8.6 L
Spec: Toyota T-IV


Threads:

Swap to 24mm Hex Plugs Rear Differential + Transmission
Cold Transmission - Is This Normal?


__

Transfer Case:

2001-2007 AWD

Drain & Fill: 0.9 L
Spec: 85W90 GL-5
What I use: Mobil 1 75W90 GL-5, Synthetic

Threads:
__

Rear Differential:

2001-2007 AWD

Drain & Fill: 0.9 L
Spec: 85W90 GL-5
What I use: Toyota 75W85, GL-5

Threads:
Swap to 24mm Hex Plugs Rear Differential + Transmission
__

Brake Fluid:

2001-2007

Total capacity: 800 ml (Estimated)

Spec: Toyota DOT 3 Brake Fluid
What I use: ATE TYP200 DOT 4

__

Fuel:

2001-2003

Capacity: 19.8 gal / 75 L
Octane (1MZ-FE): 87 (91 recommended)
Octane (2AZ-FE): 87

2004-2007

Capacity: 19.1 gal / 72 L
Octane (3MZ-FE): 87 (91 recommended)
Octane (2AZ-FE): 87
__

Air Conditioning:

2001-2007

Refrigerant
Type: R-134a
Volume: 1.42 lbs / 0.6 kg

Compressor Oil
Type: Denso ND Oil 8 / PAG 46
Volume: 4.5 oz / 100 ml
__


SPECS:

Model numbers:

2001-2007
ACU20 (4-cylinder, FWD)
ACU25 (4-cylinder, AWD)

2001-2003
MCU20 (6-cylinder, FWD)
MCU25 (6-cylinder, AWD)

2004-2007
MCU23 (6-cylinder, FWD)
MCU28 (6-cylinder, AWD)

2006-2007
MHU23 (6-cylinder, hybrid, FWD)
MHU28 (6-cylinder, hybrid, AWD)

__


Braking:

2001-2007

Setup: Front and rear disc brakes with drum (cable-actuated) floor parking brake, 4-wheel ABS system

Fluid: DOT 3 (OEM) / DOT 4

Master cylinder size: 7/8" bore

Front rotor: 296mm diameter, vented, 28mm thickness
Rear rotor: 288mm diameter, solid, 10mm thickness

Front calipers: Single 64mm metal piston, cast iron body, floating type
Rear calipers: Single 38mm metal piston, cast iron body, floating type

Rotor release bolts: Two M8 x 1.25 bolts for front & rear rotors

Parking brake: 170mm (2001-2003), 190mm (2004-2007 & 2008-2013)

Front caliper bolts: 17mm hex head, M12 x 1.25 bolts

Rear caliper bolts: (2001-2003) 14mm hex head, M10 x 1.25 bolts (2004-present) 17mm hex head, M12 x 1.25 bolts

__


Cooling:

Radiator type: Downflow

Material: Aluminum fins, plastic body/ends

Cap?: Yes

Core thickness: 5/8”, 1” (Towing package)

Cooling fan count: 2

—


Electrical:

Battery type: Group 24F

Alternator size: 100 amp, 130 amp (Towing package)

Starter motor rating: 1.4 kW (2001-2003), 1.7 kW (2004-2007)

—

Exhaust:

2001-2003 V6

Pipe diameter OD: 2” (From manifolds), 1.75” (Front pipe), 2.5” (Merge before rear cat), 2.25” (Rear cat, resonator, muffler)

Cat no: 3 (Two pre-cats, one big cat in the middle)

Cat material: Metal substrate

Exhaust material: Cast iron (Manifolds), Mild steel (Flanges excl spring flanges), Stainless (Everything else)

Muffler length: 22” (Resonator), 16” (Muffler)

Muffler types: Oval - Straight through (Resonator), Oval - Baffled (Muffler)

Exhaust setup from front to rear: Front cat, Front pipe w/ flex pipe, Rear cat w/ crushed pipe y-pipe, Main cat, Resonator, Tail pipe, Muffler



Suspension:

2001-2007

Front suspension: Independent, MacPherson struts, stabilizer bar
Rear suspension: Independent, dual-link MacPherson struts, stabilizer bar

Struts: Twin-tube, gas-charged, mounted to knuckle, sway bar end link mounting tab

2001-2007 AWD & FWD:
Front sway bar: 23mm bar, solid, non-adjustable, rubber bushings, subframe-mounted

2001-2003 FWD:
Rear sway bar: 16mm bar, solid, non-adjustable, rubber bushings, subframe-mounted

2004-2007 FWD:
Rear sway bar: 15mm bar, solid, non-adjustable, rubber bushings, subframe-mounted

2001-2007 AWD:
Rear sway bar: 16mm bar, solid, non-adjustable, rubber bushings, unibody-mounted

Front sway bar end links: M12 x 1.25 stud with 6mm allen key, 17mm nut, 10mm thick body, normal ball joint type, 250mm spacing

Rear sway bar end links: M10 x 1.25 stud with 5mm allen key, 14mm nut, 8mm thick body, normal ball joint type, 253mm spacing (2001-2003 AWD), 237mm spacing (2001-2007 FWD, 2004-2007 AWD)

Springs: Linear rate coil springs (F & R)

Lowering springs: Linear (F) Progressive rate coil springs (R) (H&R)

Moog front sway bar end links: M12 x 1.25, 13mm thick, 259mm spacing (measured as 250mm)
Moog rear sway bar end links: M10 x 1.25, 13mm thick, 255mm spacing


Torque specs:

Wheel
Alloy/Steel - 76 ft lbs

Axle nut
Front - 217 ft lbs
Rear - 159 ft lbs

Front Suspension
Strut to knuckle - 155 ft lbs
Upper mount nuts - 59 ft lbs
Piston nut - 36 ft lbs
End link - 55 ft lbs

Tie rod end nut - 36 ft lbs
Control arm to subframe (two front bolts) - 148 ft lbs
Control arm to subframe (rear bushing bolt) - 152 ft lbs
Control arm to balljoint - 94 ft lbs

Brake caliper - 77 ft lbs
ABS sensor to frame - 22 ft lbs
ABS sensor to knuckle - 71 in lbs

Rear Suspension
Strut to knuckle - 133 ft lbs
Upper mount nuts - 29 ft lbs (01-03)
Piston nut - 36 ft lbs
End link - 29 ft lbs (29 felt loose to me - went 45 instead)

Trailing arm to frame - 83 ft lbs
Trailing arm to knuckle - 91 ft lbs
Suspension member front side nut - 85 ft lbs
Suspension member rear side nut - 134 ft lbs
Toe adjustment cam bolt (AWD) - 83 ft lbs

Shaft to differential carrier bolt - 41 ft lbs
Axle carrier bolt - 59 ft lbs
Brake caliper - 46 ft lbs (2001-2003) / 58 ft lbs (2004+)
Rear suspension arm no 1 & no 2 (FWD) - 74 ft lbs
Rear suspension arm-to-axle carrier bolt (AWD) - 131 ft lbs
Rear suspension arm-to-rear suspension member (AWD) - 83 ft lbs


__


Alignment:


2001-2007

- FRONT SUSPENSION -

Toe-in (total)
0° ± 12' (0° ± 0.2°, 0 ± 2mm, 0 ± 0.08 in.)
Rack end length difference - 1.5mm (0.059 in.) or less

Wheel angle (AWD)
Inside wheel - 35°41' ± 1°30' (35.68° ± 1.5°)
Outside wheel: Reference - 31°22' (31.37°)

Wheel angle (FWD)
Inside wheel - 35°28' ± 1°30' (35.47° ± 1.5°)
Outside wheel: Reference - 31°13' (31.22°)

Camber
AWD: -0°35' ± 45' (-0.58° ± 0.75°)
FWD: -0°40' ± 45' (-0.67° ± 0.75°)
Right-left error: 45' (0.75°) or less

Caster
AWD: 2°30' ± 45' (2.50° ± 0.75°)
FWD: 2°45' ± 45' (2.75° ± 0.75°)
Right-left error: 45' (0.75°) or less

Steering axis inclination
AWD: 10°35' ± 45' (10.58° ± 0.75°)
FWD: 10°45' ± 45' (10.75° ± 0.75°)
Right-left error: 45' (0.75°) or less


- REAR SUSPENSION -

2001-2003

Toe-in (total)
0°18' ± 12' (0.3° ± 0.2°, 3 ± 2mm, 0.12 ± 0.08 in.)

No. 2 lower suspension arm length difference
1.0 mm (0.04 in.) or less

Camber
AWD: -0°45' ± 45' (-0.75° ± 0.75°)
FWD: -1°20' ± 45' (-1.33° ± 0.75°)
Right-left error: 45' (0.75°) or less


2004-2007

Toe-in (total)
0°18' ± 12' (0.3° ± 0.2°, 3 ± 2mm, 0.12 ± 0.08 in.)

No. 2 lower suspension arm length difference
AWD: 1.0 mm (0.04 in.) or less
FWD: 1.5 mm (0.06 in.) or less

Camber
AWD: -0°40' ± 45' (-0.67° ± 0.75°)
FWD: -1°20' ± 45' (-1.33° ± 0.75°)
Right-left error: 45' (0.75°) or less

__


Lighting:


2001-2003

Front:
Low beam: 9006 (HB4) x 2
High beam / DRL: 9005 (HB3) x 2
Fog light: H3 (H3C) x 2
Front turn signal & marker: 1157 x 2

Rear:
Rear turn signal: 7440NA x 2
Side marker lights: T10 x 2
Brake light & running light: 7443 x 4
Reverse: 7440 x 2
3rd brake light: 921
License plate: T10 x 2

Interior:
Dash: LED
Heated seats: Neo wedge T3 x 4 (2 green & 2 amber)
Rear defrost: Neo wedge T3 x 2 (1 green & 1 amber)
Glovebox: 74
Shifter: 74 (green)
Ashtray: 74
Map light: 31mm festoon
Dome light: 31mm festoon
Trunk light: 31mm festoon
Vanity lights: 29mm vanity x 2
Door courtesy lights: T10 x 2


2004-2007

Front:
Low beam: 9006 (HB4) x 2
High beam / DRL: 9005 (HB3) x 2
Fog light: 9006 (HB4) x 2
Front turn signal & marker: 1157 x 2

Rear:
Rear turn signal: 7440NA x 2
Side marker lights: T10 x 2
Brake light & running light: 7443 x 4
Reverse: 7440 x 2
3rd brake light: 921
License plate: T10 x 2

Interior:
Dash: LED
Heated seats: Neo wedge T3 x 4 (2 green & 2 amber)
Rear defrost: Neo wedge T3 x 2 (1 green & 1 amber)
Glovebox: 74
Shifter: 74 (green)
Ashtray: 74
Map light: T10 x 2
Dome light: 31mm festoon
Trunk light: 31mm festoon
Vanity lights: 74 x 2
Door courtesy lights: T10 x 2


2006-2007 (Hybrid)

Front:
Low beam: 9006 (HB4) x 2
High beam / DRL: 9005 (HB3) x 2
Fog light: 9006 (HB4) x 2
Front turn signal & marker: 1157 x 2

Rear:
Rear turn signal: 7440NA x 2
Side marker lights: T10 x 2
Brake light & running light: LED
Reverse: 921 x 2
3rd brake light: 921
License plate: T10 x 2

Interior:
Dash: LED
Heated seats: Neo wedge T3 x 4 (2 green & 2 amber)
Rear defrost: Neo wedge T3 x 2 (1 green & 1 amber)
Glovebox: 74
Shifter: 74 (green)
Ashtray: 74
Map light: T10 x 2
Dome light: 31mm festoon
Trunk light: 31mm festoon
Vanity lights: 74 x 2
Door courtesy lights: T10 x 2

__


Plugs:


2001-2007

Engine: M12 x 1.25, 14mm 6-point hex head (Upgraded to Votex DP006 magnetic stainless plug)
Torque spec: 33 ft-lbs

Transmission: M18 x 1.5, 10mm thread height, 10mm allen recessed plug (Upgraded to Cummins 3924147 magnetic drain plug, friend used PSR0401-1)
Torque spec: 36 ft-lbs (drain), 67 in-lbs (pan), 8 ft-lbs (filter)


Transfer case:
Drain - M18 x 1.5, 12mm thread height, 24mm 6-point hex head, magnetic
Fill - M18 x 1.5, 10mm thread height, 24mm 6-point hex head
Breather - ?

Torque spec: 36 ft-lbs (plugs), 57 in-lbs (breather)

Rear differential:
Drain - M18 x 1.5, 12mm thread height, 10mm allen recessed plug, magnetic
Fill - M18 x 1.5, 10mm thread height, 10mm allen recessed plug
Breather - M16 x 1.5, 17mm hex head

Torque spec: 36 ft-lbs (plugs), 15 ft-lbs (breather)

Radiator:
Petcock - M14 x 2.0, plastic threads with rubber o-ring

Rotors:
Release - M8 x 1.25, x2

__

Engine:

*Note - these are mainly for reference reasons, take them with a grain of salt

2001-2003 6-cylinder:
Model: 1MZ-FE, 3.0 L DOHC V6 with VVTi
Construction: Aluminum block & cylinder head, aluminum intake, closed deck
FI: Multi-port Fuel Injection (MFI)
Drive: Timing belt, Cable throttle
Power: 210 hp @5800 rpm
Torque: 222 ft-lb @4800 rpm
Compression ratio: 10.5:1
Interference?: No

2001-2003 4-cylinder:
Model: 2AZ-FE, 2.4 L DOHC I4 with VVTi
Construction: Aluminum block & cylinder head, PA6 plastic intake, open deck
Drive: Chain, Electronic throttle
Power: 155 hp @5600 rpm
Torque: 163 ft-lb @4000 rpm
Compression ratio: 9.6:1
Interference?: No

2004-2007 6-cylinder:
Model: 3MZ-FE, 3.3 L DOHC V6 with VVTi
Construction: Aluminum block & cylinder head, PA6 plastic intake. closed deck
Drive: Belt, Electronic throttle
Power: 225 hp @5800 rpm
Torque: 242 ft-lb @4800 rpm
Compression ratio: 10.8:1
Interference?: Yes

2004-2007 4-cylinder:
Model: 2AZ-FE, 2.4 L DOHC I4 with VVTi
Construction: Aluminum block & cylinder head, PA6 plastic intake, open deck
Drive: Chain, Electronic throttle
Power: 160 hp @5600 rpm
Torque: 166 ft-lb @4000 rpm
Compression ratio: 9.8:1
Interference?: No

__


Rear differential:

Ratio: 2.928

Type: Open differential (17SU), Limited Slip Torsen differential (17TU) - select 01-03 models without traction control, LSD also optional on 1999-2000 Lexus RX300

Size: 6.7”

—


Front & center differential:

Front type: Open differential

Center type: 50/50 split (non-locking)

The front & center differential are lubricated using fluid shared with the transmission. Therefore, these two differentials do not have a separate plug to service them.

—


Transfer case:

Type: MF2AV Viscous coupling (2001-2003), MF2A standard t-case (2004-2007)

Outward appearance is identical between the t-cases, however the 04+ models dropped the VC

Fun fact: 2007-2009 RX350 has the same t-case as the 01-03 HL down to the part number

—


Transmission:


2001-2003 V6 FWD:
Transmission/Transaxle: U140E
Type: 4-speed automatic w/ OD
Gear ratios:


2001-2003 V6 AWD / 2001-2007 I4 AWD:
Transmission/Transaxle: U140F
Type: 4-speed automatic w/ OD
Gear ratios:


2004-2007 V6 FWD
Transmission/Transaxle: U151E
Type: 5-speed automatic w/ OD


2004-2007 V6 AWD
Transmission/Transaxle: U151F
Type: 5-speed automatic w/ OD


2001-2007 I4 FWD
Transmission/Transaxle: U241E
Type: 4-speed automatic w/ OD
Gear ratios:


__


Tow Package add-ons:


Cooling:
1" thick radiator
Heavy duty fans
Transmission oil cooler
Power steering cooler (I4 only, fitment possible on V6)
Engine oil cooler (I4 only)

Electrical:
130 amp alternator
Towing converter/module

__


3rd row add-ons:


Suspension:
Stiffer rear springs

Interior:
Folding third row seating concealed in the trunk


__


Limited add-ons:


Interior:
Soft touch door panels (Most models)
Leather heated seats w/ side air bag (Most models)
Leather shift knob
Leather steering wheel
Steering wheel radio controls (04-07)
Powered driver's seat (01-03) - Standard in 04+
Powered passenger's seat (04-07)
Wood grain interior trim
Auto climate control
Sunroof
JBL sound system
Auto headlights
Diversity antenna integrated into rear glass
Homelink garage opener
Auto-dimming & compass mirror (04-07)
Vanity mirror lights

Exterior:
Rear spoiler
Limited badge
Fog lights
17" rims (04-07)


__


Random stuff:

PCV fuel line size: 3/8" (AN6)
Power steering line size: 3/8" (10mm)
Transmission oil cooler line size: 3/8" (10mm)
Vacuum hose size: 3/16" (5mm)
Steering wheel diameter: 380mm / 15"
Horn quantity & type: 2, disc, single-wire
Windshield wiper inserts: 22" (Driver's side), 19" (Passenger side), 12" (Rear)
Rear wiper type: H307
Steering ratio: 16:1
Turns to lock: 2.98 - 3 turns
Steering angle: ?

Exhaust pipe OD: 2” (Headers), 2.5” (Merge after y-pipe), 2.25" (Everywhere else)
Catalytic converter material: Metal substrate
Catalytic converter quantity: 3 (2 pre-cats on each manifold, 1 main one underneath the car before the resonator)
Exhaust hanger hole size: 12mm / 0.47"
Exhaust hanger hole spacing: 38mm / 1.5"
Exhaust hanger overall size: 68mm L, 54mm W, 25mm H
Hanger material: EPDM Rubber

Front subframe compatibility (Part no. 51100-48073):
2001-2013 Toyota Highlander (excl hybrid)
2004-2015 Lexus RX (excl hybrid)

Rear subframe compatibility AWD (Part no. 51206-0E020):
1999-2009 Lexus RX (excl 400h)
2001-2013 Toyota Highlander (excl hybrid)
2009-2015 Toyota Venza

__


USEFUL THREADS FROM OTHERS:



CR Threads:


"FIX IT" Threads:




—

WEIGHT STATISTICS:

NOTE: These are just for fun! Take with a grain of salt


- Gross weight -
All: 4985

- Curb weight -

2001-2003:

I4, FWD: 3485 lbs
I4, AWD: 3715 lbs

V6, FWD: 3660 lbs
V6, AWD: 3880 lbs


2004-2007:

I4, FWD, 2-row: 3520 lbs
I4, FWD, 3-row: 3570 lbs
I4, AWD, 2-row: 3750 lbs

V6, FWD, 2-row: 3650 lbs
V6, FWD, 3-row: 3705 lbs
V6, AWD, 3-row: 3935 lbs


2006-2007 Hybrid:

V6, FWD: 4070 lbs
V6, AWD: 4245 lbs


Other parts:

Full tank of gas (2001-2003): 123.8 lbs
Full tank of gas (2004-2007): 118.9 lbs

OE trailer hitch (2004-2007): 50 lbs
16" alloy spare 2001-2003: 44 lbs
Roof rack rails + hardware: 13 lbs
Roof rack OE cross bars: 4 lbs

Front sway bar (2001-2003): 11.2 lbs
Front sway bar (2004-2007): ?
Front sway bar upper bracket (2001-2007): 0.33 lbs
Front sway bar upper bracket (2008-2019): 0.37 lbs
Front sway bar upper bracket (2004-2020 Sienna): 0.365 lbs
Rear sway bar (2001-2003): ?
AWD front sway bar (2008-2019): 14.7 lbs
Addco rear sway bar: ? (Coming soon) lbs

Rear knuckle assembly (shield, hub, studs, etc) (2001-2003 AWD): 21 lbs x2 = 42 lbs
Rear knuckle assembly (shield, hub, studs, etc) (2008-2013 AWD): 25.38 lbs x2 = 50.76 lbs

Front knuckle assembly (shield, hub, studs, etc) (2001-2003 AWD): ?
Front knuckle assembly (shield, hub, studs, etc) (2004-2007 AWD): ?
Front knuckle assembly (shield, hub, studs, etc) (2008-2013 AWD): ?

Front calipers (2001-2007): 6.12 lbs x2 = 12.24 lbs
Front rotors: (2001-2007): 8.4 lbs x2 = 16.8 lbs

Front calipers: (2008-Present): 8.6 lbs x2 = 17.2 lbs
Front rotors: (2008-Present): 10.2 lbs x2 = 20.4 lbs

Rear calipers (2001-2003): 5.91 lbs x2 = 11.82 lbs
Rear rotors: (2001-2003): 10.46 lbs x2 = 20.92 lbs

Rear calipers (2008-2013): 4.75 lbs x2 = 9.5 lbs
Rear rotors: (2008-2013): 13.1 lbs x2 = 26.2 lbs

Rear calipers: (2006-2013 IS350): ?
Rear rotors: (2006-2013 IS350): 13.9 lbs x2 = 27.8 lbs



__



Threads:

Showcase:

__


Disclaimer:
I am not responsible or liable for any modifications you make to your car, whether it be the parts or the methods you use to install them! Perform these changes at your own risk. What fits my cars may not fit yours.


TheLowlander - Last edited: June 7th, 2023
