Today I decided to install my Weapon R header and figured I would try and make a how to since I couldn't find one to save my life anywhere else.I would go about installing it from the top of the motor. Very little room under the car. Trust me I tried and had to go from the top of the motor.

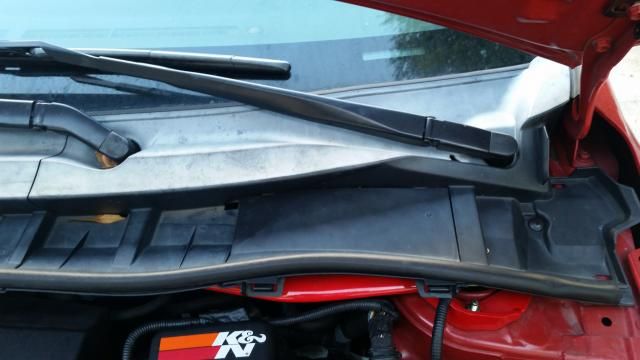

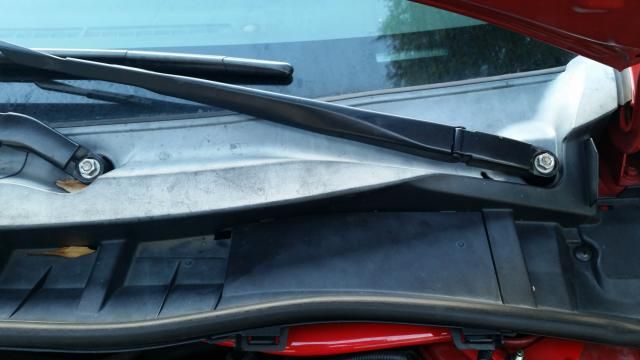

First go about taking the windshield wiper arms and then the black plastic moldings around them.

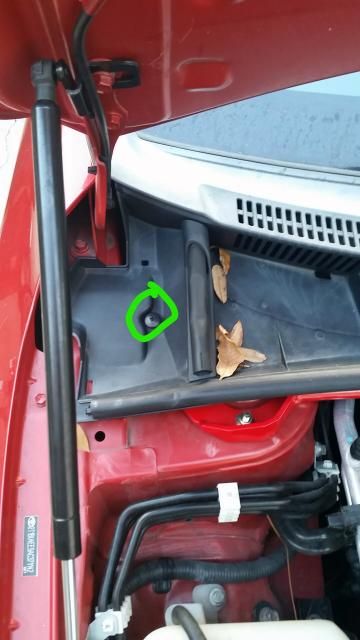

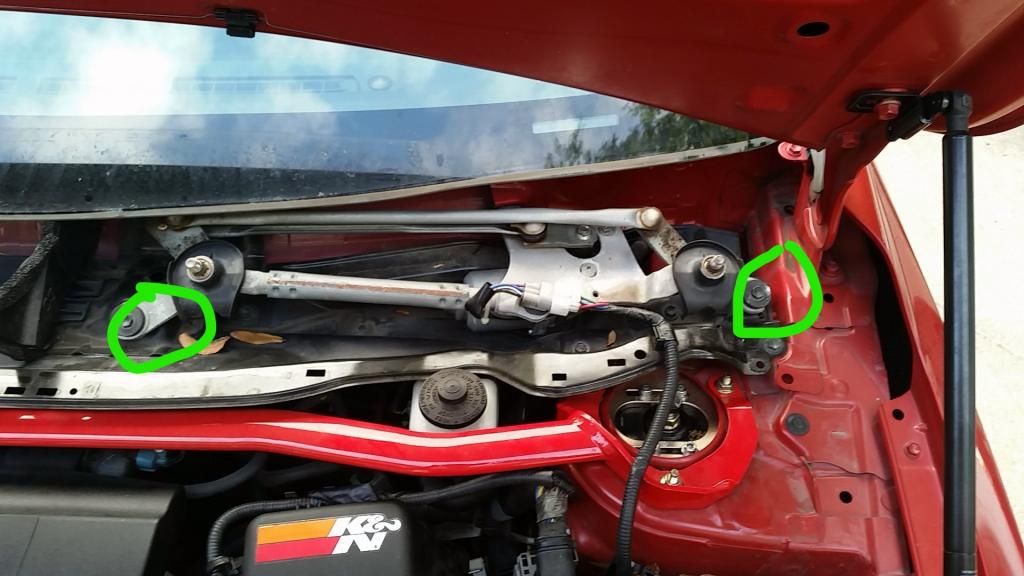

Take the two nuts off with a 14mm socket

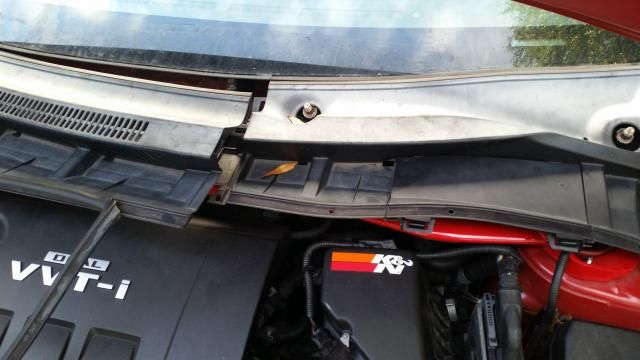

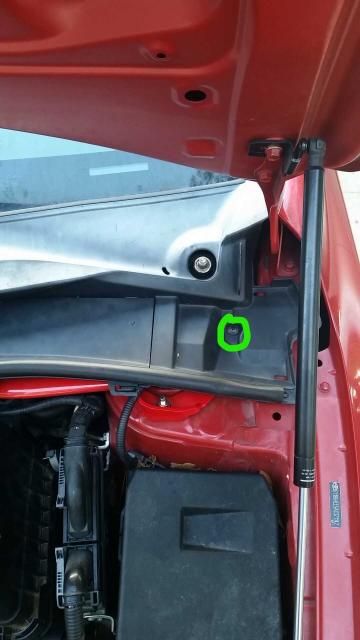

Next there are two plastic pop clips on the side
Then the rubber seal will pop off on the drives side then the plastic will separate but be careful the clips under the plastic will break if yanked and pulled the wrong ways

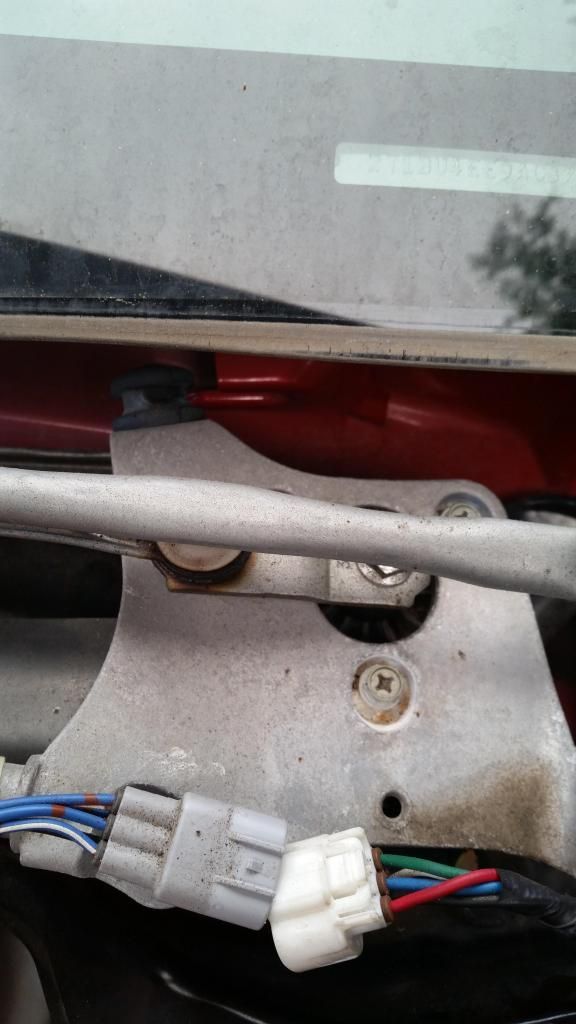

Once off you will see the wiper motor. You will need a 10mm if I remember correctly for the two bolts holding it on
Then once the bolts are out you will need to unplug the wiper motor and slide the motor to the left cause of a rubber piece that fits into a slot on the back of the motor.

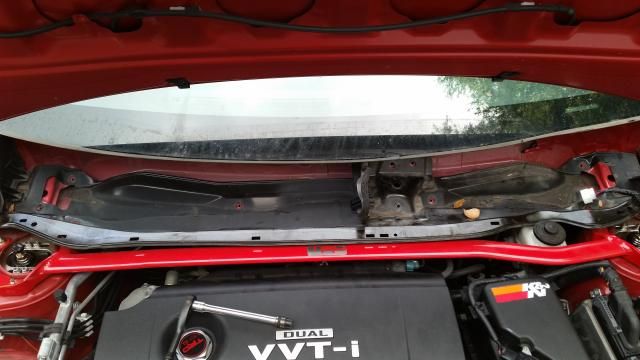

The black tray under that will need to be removed its 12 bolts all 10mm then just picks up and lifts off.
If you have a strut bar on your car, best to take it off now cause it does get in the way. Not fun finding that out late as the car is jacked up in the air.

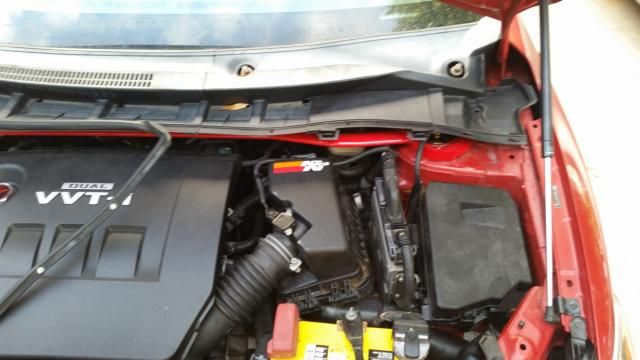

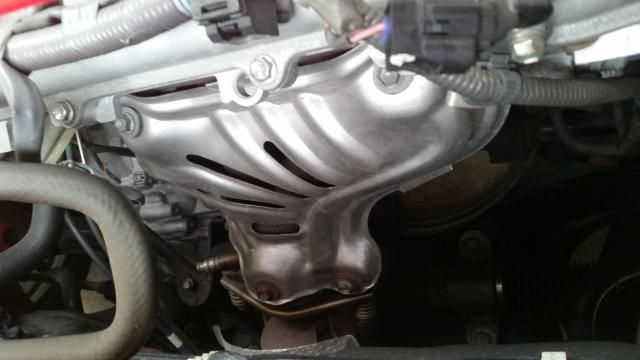

Once the tray is gone you will be able to look behind the motor and see the exhaust manifold right there. Take the top of the heat shield off now. 4 bolts 12mm socket. Then best bet is just disconnecting the O2 and take the sensor off once the manifold is off the car.
At this time I jacked my car up and put it on jack stands to go from under the car. Once set up get a bunch of extensions for your ratchet(unless you have some small hands that can fit in really tight places). The best way I found was once I had all 3 extensions on my ratchet, I found a hole perfectly over the front sway bar that gives you a great view to take the two bolts off that connect the header to midpipe. The two bolt are 14mm and has welded nuts on the back so no need for the wrench on the back.

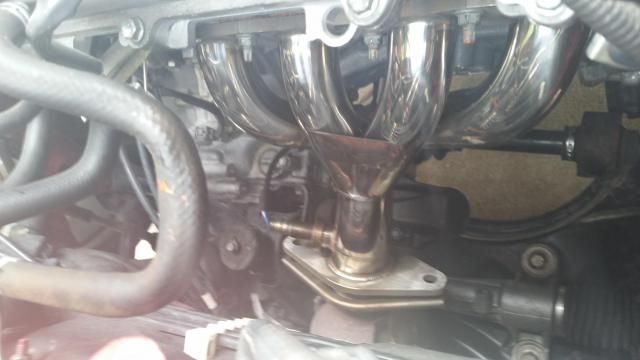

These two bolts.
While your under the car there is a bracket that secures the header to the engine block, it best to separate the bracket from the header then from the block so it comes out in two separate pieces.(I rounded the bolt so I was stuck taking it off with the bracket still on the manifold)

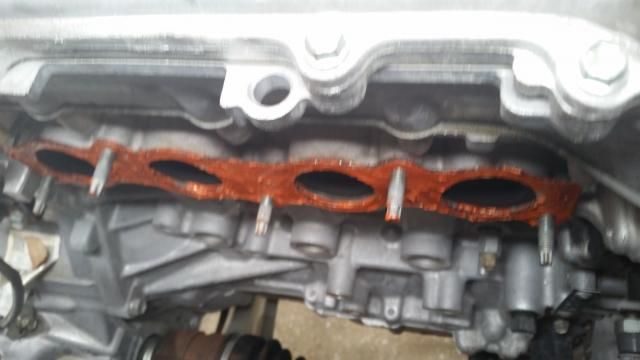

Once that's off, you can get a 12mm deep socket and undo the 5 nuts holding the manifold to the block. With a little bit of twisting and turning just pull the manifold off from the top of the motor.

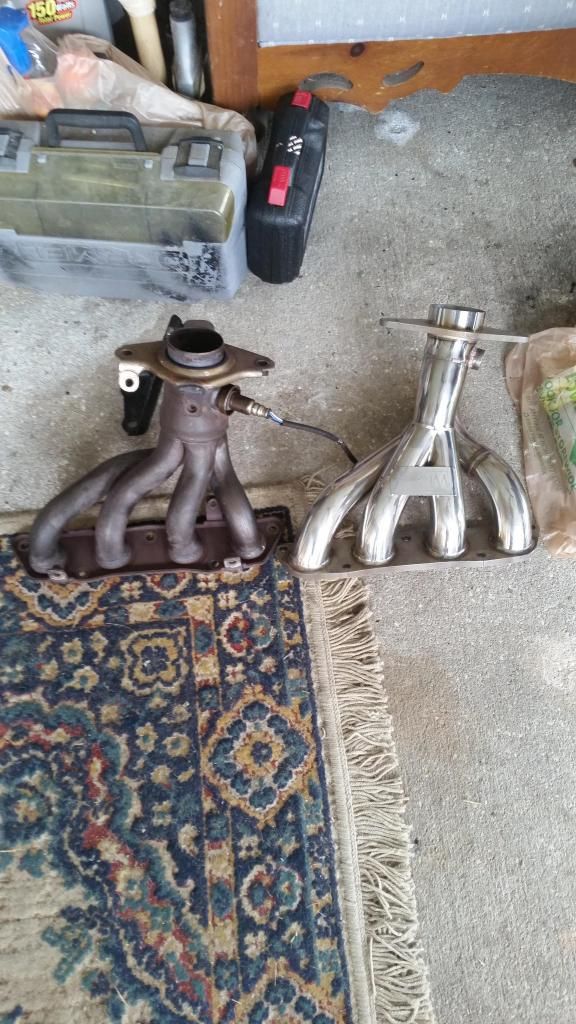

This is what the two look like.
At this time, I would start to prepare the new header for install.
I used this high temp. gasket maker on both sides of the manifold to block gasket
You can toss the old donut exhaust you had on the end of the header or replace it with a new one(My Weapon R header came with a new exhaust donut) but I used a dremel and ground down the inside until it fit over the header(header outlet is now bigger so OEM donut gasket is for a smaller pipe size) otherwise your gonna have to guess and be lucky that it slides on correctly when connecting midpipe to header.
I went to advance auto parts and rented a O2 sensor removal socket. Cost me $32 on a credit card but it gets put back the next day when I returned it. You are gonna need a sensor removal tool because the sensor had a lip coming up that wouldn't let me get a wrench in to take it off.
Now its time to install the header. When putting it on tighten each nut a little bit starting in the middle them moving to the outer nuts. Then reconnect the O2 sensor plug
Now once that is all tightened up and reconnected its time to go back under the car.
The header came with new bolts, springs, washers and nuts to retighten the midpipe to header. So go back to the long ratchet extensions and a 11/16 wrench to hold the nut on the back side of the connector. You may need to remove the rubber hangers on the midpipe to be able to shift the pipe to connect easier to the header. Then once all tightened up, I started my car on the jack stands so I could go under the car to feel for any exhaust leaks.
If you checked and no exhaust leaks are found, you're pretty much done. Just reverse the removal with replacing strut bar(if you have one), putting back the tray with 12 bolts, install wiper motor and re connect plugs, fit the plastic moldings that cover the wiper motor(Be careful to not break to many clips. They fit into holes on that tray under them),and install all the seals and wiper arms and you're all done.
Original Thread Link(dead): http://www.tunemytoyota.com/forum/showthread.php?t=10504
Today I decided to install my Weapon R header and figured I would try and make a how to since I couldn't find one to save my life anywhere else.I would go about installing it from the top of the motor. Very little room under the car. Trust me I tried and had to go from the top of the motor.
First go about taking the windshield wiper arms and then the black plastic moldings around them.
Take the two nuts off with a 14mm socket


Next there are two plastic pop clips on the side


Then the rubber seal will pop off on the drives side then the plastic will separate but be careful the clips under the plastic will break if yanked and pulled the wrong ways


Once off you will see the wiper motor. You will need a 10mm if I remember correctly for the two bolts holding it on

Then once the bolts are out you will need to unplug the wiper motor and slide the motor to the left cause of a rubber piece that fits into a slot on the back of the motor.

The black tray under that will need to be removed its 12 bolts all 10mm then just picks up and lifts off.

If you have a strut bar on your car, best to take it off now cause it does get in the way. Not fun finding that out late as the car is jacked up in the air.
Once the tray is gone you will be able to look behind the motor and see the exhaust manifold right there. Take the top of the heat shield off now. 4 bolts 12mm socket. Then best bet is just disconnecting the O2 and take the sensor off once the manifold is off the car.

At this time I jacked my car up and put it on jack stands to go from under the car. Once set up get a bunch of extensions for your ratchet(unless you have some small hands that can fit in really tight places). The best way I found was once I had all 3 extensions on my ratchet, I found a hole perfectly over the front sway bar that gives you a great view to take the two bolts off that connect the header to midpipe. The two bolt are 14mm and has welded nuts on the back so no need for the wrench on the back.
These two bolts.

While your under the car there is a bracket that secures the header to the engine block, it best to separate the bracket from the header then from the block so it comes out in two separate pieces.(I rounded the bolt so I was stuck taking it off with the bracket still on the manifold)

Once that's off, you can get a 12mm deep socket and undo the 5 nuts holding the manifold to the block. With a little bit of twisting and turning just pull the manifold off from the top of the motor.

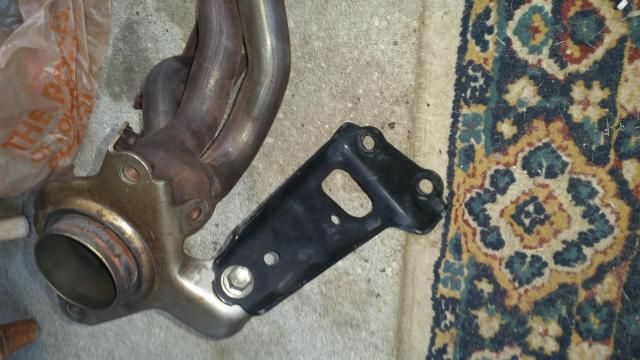

This is what the two look like.
