Discussion Starter #1 (Edited)
hey everyone, i got a 2000 camry 5sfe 4 cylinder AT car. the head just had some problems and im looking to order a new head i know there is a difference in the head between CA vs fed emissions. i also know there is a sticker under the hood saying which one it is (but it appears that sometime before me it had a new hood put on because all the stickers are non existent). how can i tell the difference between the two without the sticker? any dead give aways? certain vin codes etc? i tried searchin but i didnt come up with any advice. thanks. all help is appreciated

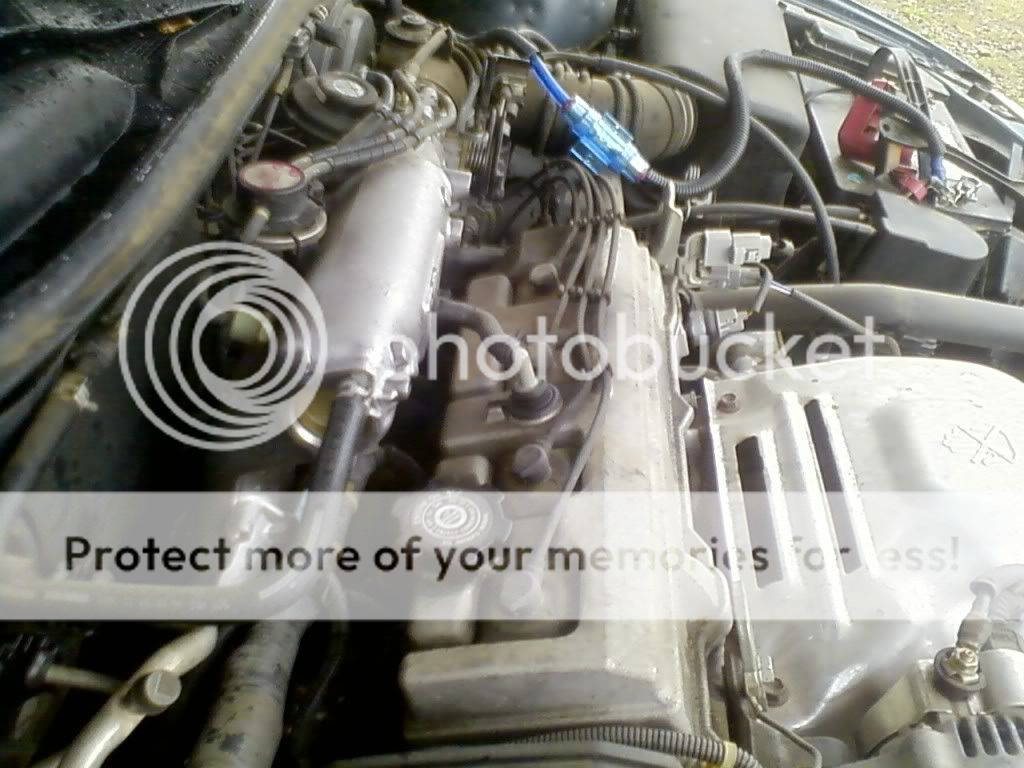

here is a picture in case it helps. thanks



·
Turbo Snail
Cam A Roo
Joined
·
5,300 Posts
Look on the bottom side of your hood at the vacuum routing diagram.. if its federal it will say FED. if its California it will say CALI.

Another way to tell is to look at the injectors. The California Injectors have an Insulator on the thick section of the injector, right around where the injector fits inside the head. the Federal do not.

There are also extra vacuum lines underneath where the VSV goes for Emissions Purposes.





·
Registered
Joined
·
13 Posts
Discussion Starter #3
i cant see the injectors before removing them theyre covered in grease and oil from a valve cover leak. also as i stated before, all of my stickers under the hood are gone. that is why i cant figure it out. i have no wiring or vacuum diagrams or any of it. any ways to tell by the vin or multiple cats or any dead blow giveaways?


·
Turbo Snail
Cam A Roo
Joined
·
5,300 Posts
CALIFORNIA:
REMOVE AIR TUBE
(a) Disconnect the following hoses:
(1) w/ A/C:
A/C hose (from ASV) from air tube
(2) 2 air hoses (from PS pump) from air tube
(3) California only:
2 vacuum hoses from VSV (for fuel pressure
control)
(4) Vacuum hose from air intake chamber
(b) Remove the 3 bolts, wire clamp and air tube.
21. DISCONNECT 2 ENGINE WIRE GROUND STRAPS
FROM INTAKE MANIFOLD
22. DISCONNECT KNOCK SENSOR AND VSV (FOR
EGR) CONNECTORS
23. CALIFORNIA ONLY:
DISCONNECT VSV (FOR FUEL PRESSURE CON–
TROL) CONNECTOR
24. REMOVE VSV OR VSV ASSEMBLY

This is for CALIFORNIA ONLY. Thats why I said if you look where the VSV is its your Dead Give Away.

If you dont know your motor is Original, its hard to tell by VIN #

The California VSV Is almost like two VSV's stacked on top of each other with a vacuum line running to each one.



reach behind the intake and feel in the middle of where it attaches to the head.

You will probably have to remove the intake tube to reach it easily.

You could also locate the ECM if that doesn't confirm it for you. The Computers are Different for CALI and FED.


·
Registered
Joined
·
13 Posts
Discussion Starter #5
well i reached my hand back there and felt what i believed was the vsv. i felt two of them each with their own vacuum line. im assuming that it is california emissions since it looks like it only has 1 of them on the federal.


·
Turbo Snail
Cam A Roo
Joined
·
5,300 Posts
well i reached my hand back there and felt what i believed was the vsv. i felt two of them each with their own vacuum line. im assuming that it is california emissions since it looks like it only has 1 of them on the federal.
Could be... :thumbsup:

If you are not 100% sure, check the computer


·
Turbo Snail
Cam A Roo
Joined
·
5,300 Posts
where is the computer located and what am i checking for? thanks a ton for your help i appreciate it. sorry for the newb questions im an american truck/diesel guy. new to the import world
There are a couple computers on the car, but the one you are looking for is underneath the Armrest inside the car :)


·
Registered
Joined
·
13 Posts
Discussion Starter #9
There are a couple computers on the car, but the one you are looking for is underneath the Armrest inside the car :)
do you mean under neath the center console cover (or armrest i guess it is)

sorry for the confusion these toyotas are way different than all my chevys


·
Turbo Snail
Cam A Roo
Joined
·
5,300 Posts
do you mean under neath the center console cover (or armrest i guess it is)

sorry for the confusion these toyotas are way different than all my chevys

Well look underneath the Kick panel on the Passengers side first and look at the cruise control unit. I don't know if they are different but they might be. It will be easier to check that one first :)


·
Registered
Joined
·
13 Posts
Discussion Starter #11
Well look underneath the Kick panel on the Passengers side first and look at the cruise control unit. I don't know if they are different but they might be. It will be easier to check that one first :)
ok i will check those in the morning. what exactly am i checking them for? part numbers or something?


·
Registered
Joined
·
13 Posts
Discussion Starter #13
Yeah, the CA ECU's have to be more efficient so the ECU's are programmed with different fuel trims and such. They should have different model #'s.

A quick thought. Check along the firewall for a sticker as well. They sometimes move them from Generation to Generation.
i iwll check that, but im pretty sure they should be under the hood. the hood insulation has cutouts for the stickers theyre just not on there and i can see the hood has been repainted so who knows what happened to them.

if i just call the dealer in the morning and give them the vin they should be able to tell me what emissions shouldnt they? thatll be alot easier than tearing apart the car in the rain


·
Turbo Snail
Cam A Roo
Joined
·
5,300 Posts
If you have your VIN # and you think your motor hasn't been changed, you could also check http://www.toyodiy.com/parts/ and look up your VIN.

It may show you what model you have, if not then check for Injectors as the part #'s will be different

numbers for automatic tranny, non-japan made
a) federal
23209-74100

b) california
23209-74140


·
Registered
Joined
·
13 Posts
Discussion Starter #15
i typed my vin in on that site and clicked fuel injection parts and it said california next to part numbers so im assuming its a cali car. i think im just going to order the california head worst case scenario i just plug the extra port. better than not having what i need. and i live in california so it wont hurt


·
Turbo Snail
Cam A Roo
Joined
·
5,300 Posts
i typed my vin in on that site and clicked fuel injection parts and it said california next to part numbers so im assuming its a cali car. i think im just going to order the california head worst case scenario i just plug the extra port. better than not having what i need. and i live in california so it wont hurt

You wouldn't have to plug anything.. If you got a california head for a Federal motor, all you would have to do is switch the VSV and Injectors from the Federal head to the Cali head

why are you getting a new head anyways? Is your current head cracked?


·
Registered
Joined
·
13 Posts
Discussion Starter #17
You wouldn't have to plug anything.. If you got a california head for a Federal motor, all you would have to do is switch the VSV and Injectors from the Federal head to the Cali head

why are you getting a new head anyways? Is your current head cracked?
no i think i have a bent valve or something but its missing and making a bad clank i can hear in the top end. and with prices in california i can order a remanned head online than i can get this one fixed for. and i dont want to wait a week or two to have the head done id rather just order a new one


·
Turbo Snail
Cam A Roo
Joined
·
5,300 Posts
As you can see from the pictures below, The concave section of the piston, and the concave section on the head is what makes this motor non-interference.




I'm not trying to throw you in the wrong direction though so don't think that..
I just dont want to see you buy this head, and it not solve your problem. It would be a waste of money, and time

In a 5sfe its not a well known problem to have bent valves.


·
Registered
Joined
·
13 Posts
Discussion Starter #20
to be honest im not exactly sure whats wrong with it i havent dove into it at all. i jus tknow it clanks really bad and runs rough and i can hear it really bad with my stethoscope through the valve cover and the noise is non existent in the oil pan. and i dont have time to tak eoff the head drop it off let it sit and get rebuilt id rather just pay the buck for a new one and have it here and swap em out in a day
